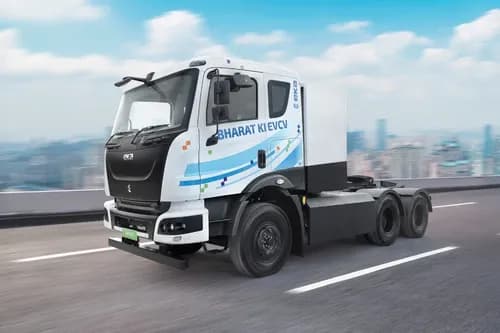

EKA 55T

Applications

Heavy Cargo Transport, Machinery and Equipment Hauling, Logistics and Freight Transport, Automobile Transport, Oil, Gas, and Mining Industry, Forestry and Logging, Agriculture and Farming, Infrastructure and Roadwork, Emergency and Disaster Response, Specialized Hauling (Oversized Loads)

Ground Clearance (mm)

275

Width (mm)

2490

Gross Vehicle Weight (Kg)

55000

Length (mm)

7115

Height (mm)

3028

Wheelbase (mm)

4100

Battery Capacity (Kwh)

322

Kerb Weight (Kg)

12000

Payload (Kg)

43000

Cargo Box Dimension (LxWxH) (mm)

40’ Container / Flatbed Trailer

Max Speed (Km/h)

80

Driving Range (Km/Charge)

200

Charging Time (Hours)

3

Charger Type

240kW,Dual Gun

Battery Type

Lithium Ferrous Phosphate (LFP)

Gradeability (%)

27

Steering Type

Power Steering

Chassis Type

Ladder

Cabin Type

Sleeper/Day Cab Options Available

Front Suspension

Parabolic Leaf Spring

Body Type

Flatbed Trailer

Rear Suspension

Bell Crank Leaf Spring (Inverted Leaf Bogie Suspension Optional)

Fuel Type

Electric

Power (HP)

Rater Power - 254, Peak Power - 442

Torque (Nm)

3500

Emission Norm

Zero Emission

Transmission Type

AMT

Gearbox

6-Speed

Motor Type

PMSM Traction Motor

Adjustable Driver Seat

Yes

Seat Belts

Yes

Seat Type

Standard Seats

Driver Information Display

Yes

Navigation System

No

Seating Capacity

Driver + 1 Passenger

Hill Hold

Yes

Brakes

Drum Brakes

Parking Brake

Yes

Number of Tyres

10

Front Tyre Size

295/90R 20 16PR

Rear Tyre Size

295/90R 20 16PR
