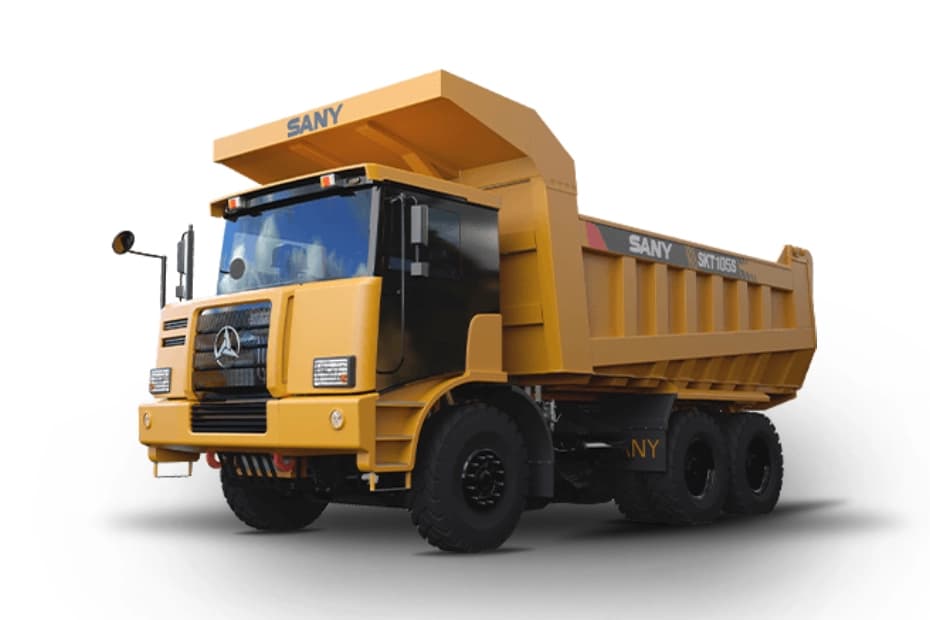

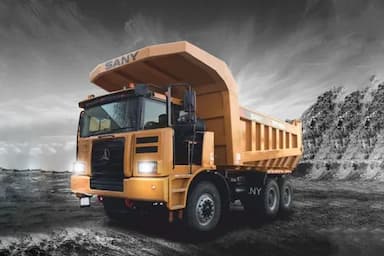

Sany SKT90S

Applications

Mining operations, Quarrying, Large-scale earthmoving, Heavy material transportation, Infrastructure projects, Open-pit mining

Width (mm)

3568

Gross Vehicle Weight (Kg)

90000

Length (mm)

9026

Height (mm)

4386

Kerb Weight (Kg)

32000

Payload (Kg)

60000

Steering Type

Full-Hydraulic + Emergency Steering

Front Suspension

Non-Independent Hydro-Pneumatic Spring Suspension with Hydraulic/Pneumatic (Nitrogen) Suspension Cylinders of Variable Damping Characteristics, Featuring High Unit Energy Storage and Variable Stiffness and better absorption of road impact

Body Type

Dump Body

Rear Suspension

Reinforced Knuckle Bearing Thrust Rod + Tightening by Leaf Spring Straight Bolts

Fuel Type

Diesel

Power (HP)

530

Torque (Nm)

2300

Emission Norm

BS-VI

Transmission Type

Manual

Engine Capacity (cc)

12536

Engine Type

4 Stroke and Turbocharged/Intercooled

Gearbox

6 Forward & 1 Reverse

Engine Cylinders

6

Adjustable Driver Seat

Yes

Seat Belts

Yes

Air Conditioner (A/C)

Yes

Seat Type

Standard Seats

Driver Information Display

Yes

Tiltable Steering

Yes

Seating Capacity

Driver + 2 Passenger

Brakes

Double Circuit Pneumatic Control Brake

Parking Brake

Yes

Number of Tyres

10

Front Tyre Size

16.00 R25

Rear Tyre Size

16.00 R25 (36PR)
