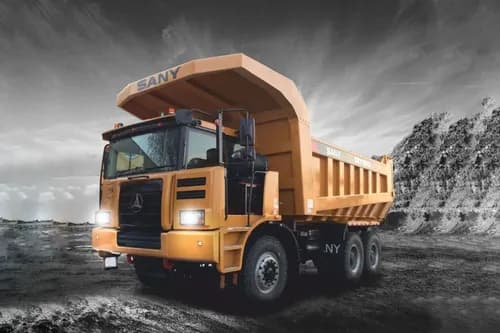

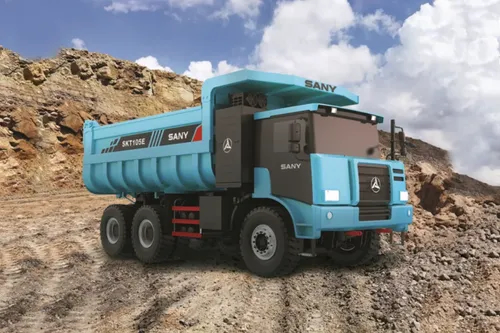

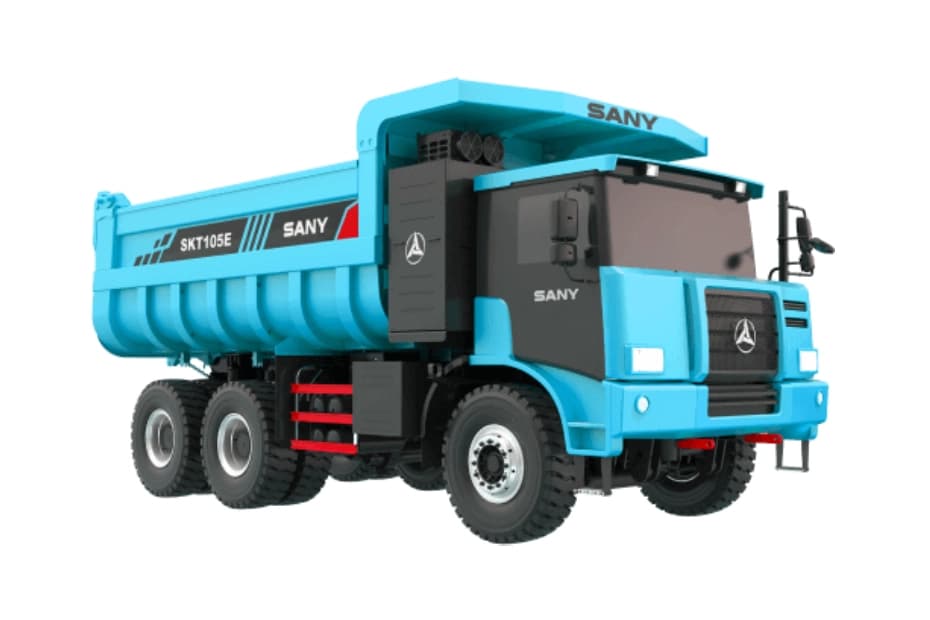

Sany SKT105E

Applications

Mining & Quarrying, Coal Transport, Iron Ore Transport, Aggregate Hauling, Earthmoving Operations, Construction Material Transport, Metal Extraction Sites, Large Infrastructure Projects, Overburden Removal, Bulk Material Transport

Ground Clearance (mm)

350

Width (mm)

3960

Gross Vehicle Weight (Kg)

108000

Length (mm)

9550

Height (mm)

4250

Wheelbase (mm)

4075+1750

Battery Capacity (Kwh)

423

Kerb Weight (Kg)

38000

Payload (Kg)

70000

Driving Range (Km/Charge)

160

Charging Time (Hours)

1

Battery Type

Lithium Iron Phosphate

Gradeability (%)

35

Steering Type

Tiltable and Telescopic Steering

Front Suspension

Front Suspension Stroke - 220 mm

Body Type

Dump Body

Rear Suspension

Rear Suspension Stroke - 250 mm

Fuel Type

Electric

Power (HP)

992

Torque (Nm)

2100

Emission Norm

Zero Emissions

Transmission Type

Double 3 Gear AMT

Motor Type

Permanent Magnet Synchronous Motor

Adjustable Driver Seat

Yes

Seat Belts

Yes

Optional Equipment

Eddy Current Reatarder, Power Battery Capacity 350 Kwh (Downsize), 564 & 642 Kwh (Upsize), Tilted Body, Automatic Weighing System, Automatic Lubrication System, 360 Degree Camera, A/C with Cooling Function Only, Electric Lifting of the Cab, Dump Body 38m^3

Air Conditioner (A/C)

Yes

Seat Type

Cushioned Seats

Driver Information Display

Yes

Tiltable Steering

Yes

Seating Capacity

Driver + 2 Passenger

Brakes

Single-axle high-torque brakes

Parking Brake

Yes

Number of Tyres

10

Front Tyre Size

16.00R25 E3, Option (16.00R25 E4)

Rear Tyre Size

16.00R25 E3, Option (16.00R25 E4)
