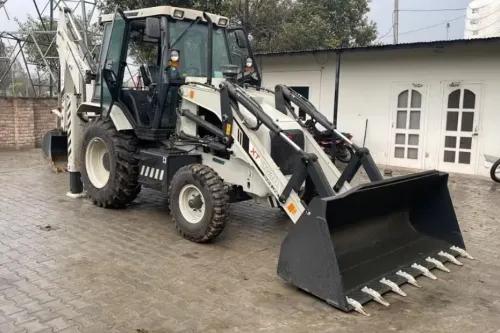

Escorts XT 1610 Backhoe Loader

Model

N/A

Compliant

BS-IV

Gross Power

76 hp

Displacement

N/A

Maximum Torque

295 NM

Air Intake Type

N/A

Dump Angle

45 Deg.

Dump Height

3000 MM

Max Pay Load

1980 kg

Reach At Ground

N/A

Hinge Pin Height

3700 MM

Load Over Height

3510 MM

Rollback At Ground

45 Deg.

Bucket Capacity Std

N/A

Bucket Breakout Force

N/A

Hinge Pin Forward Reach

N/A

Max Reach At Full Height

N/A

Maximum Lifting Capacity

N/A

Loader Arm Breakout Force

N/A

Below Ground Level Dig Depth

N/A

Max Reach At Full Height Bucket Dumped

0

Type

Power Steering

System Pressure

N/A

Unit Displacement

N/A

Turning Circle Diameter Outside Bucket

N/A

Turning Circle Diameter Outside Bucket Not Braked

N/A

Max Dig Depth

4.8 Meter

Bucket Capacity

1 Cum

Bucket Rotation

N/A

Max Lift Capacity

2000 Kg

Safe Working Load

N/A

Max Working Height

N/A

Dipper Configuration

N/A

Max Load Over Height

N/A

Bucket Breakout Force

N/A

Dipper Tear Out Force

N/A

Bucket Capacity Backhoe

0.2

Reach Ground Level To Swing Center

N/A

Reach At Full Height To Slew Center

N/A

Reach Ground Level To Rear Wheel Center

N/A

Wheelbase

2140 MM

Track Width Rear

1750 MM

Transport Length

N/A

Track Width Front

1870 MM

Width Over Bucket

2380 MM

Max Operating Weight

8190

Width Over Stabilizer

N/A

Height To Top Of Cabin

N/A

Minimum Ground Clearance

N/A

Overall Transport Height

N/A

Pump Flow

N/A

Pump Type

N/A

System Type

N/A

System Relief Pressure

N/A

Coolant

15 L

Fuel Tank

134 L

Rear Axle

17.1 L

Engine Oil

11.5 L

Hydraulic Oil System

80 Ltr

Hydraulic Oil Replacement

N/A

Transmission Oil Capacitysystem

16.5 L

Standard Tyre Rear

16x9- 28 -12 PR

Standard Tyre Front

9 x16 -1 6 PR

Hd Tyre Rear Optional

N/A

Parking

N/A

Service

N/A

Rear

N/A

Front

N/A

Front Axle Oscillation

N/A
