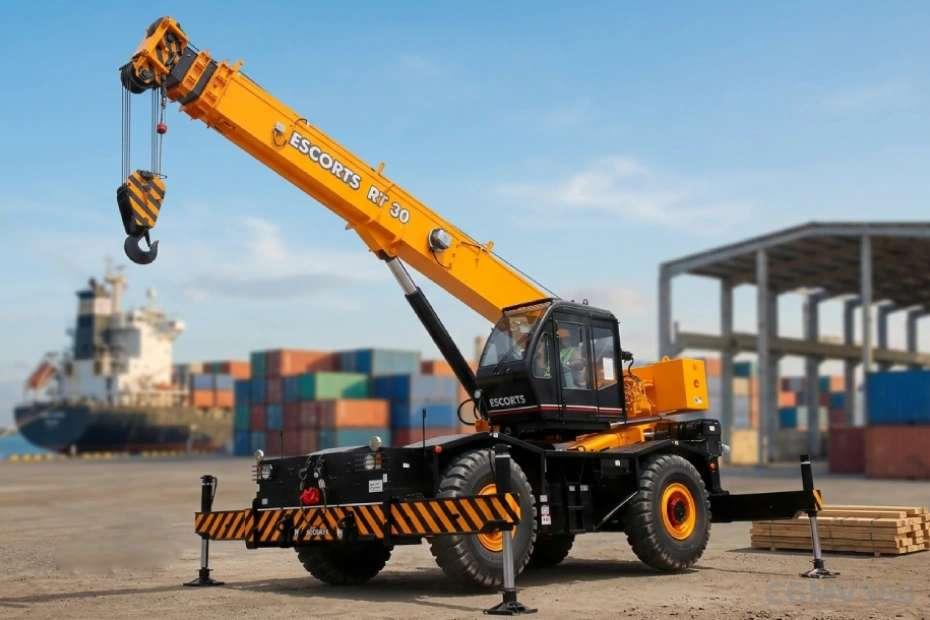

ESCORTS RT 30

Boom Length

27 m (88 ft) per official Escorts Kubota spec; other sources list 25 m (Lectura) or 33.5 m (dealer listing) - sources conflict

Engine Power

134-135 kW (180 HP)

Gradeability

50% (unladen)

Fixed Jib Length

8.5 m (max luffing jib)

Max Lifting Capacity

32 T @ 3 m radius (on fully extended outriggers)

Type

Water-cooled, turbocharged diesel engine; CEV Stage IV / CEV Stage V compliant; Make/Model H6C418022 / H6C518022

Power

134-135 kW (180 HP) @ 2,200 rpm (rated)

No Of Cylinders

6

Type

Fully hydraulic, controlled from crane cab via hydraulic rotary joint to chassis; 4 steering modes - 2-wheel (front), 2-wheel (rear), 4-wheel, and crab

Pump

Max flow 220 L/min; circuit pressure 260 kg/sq.cm

Hydraulic Tank

Not publicly specified

Fuel Tank Capacity

250-300 L (sources vary: 250 L per one listing, 300 L per another)

Max Lifting Capacity

32 T @ 3 m radius (fully extended outriggers)

Rear

18.00x25-32PR, earthmover type (4 nos. total)

Front

18.00x25-32PR, earthmover type

Parking

Not publicly specified

Rear Wheel

Not publicly specified

Front Wheel

Not publicly specified

Type

4-section, hydraulically telescopic boom

Length

10 m (min) to 25-27 m (max standard); one source lists 33.5 m with max height 36 m - sources conflict

Telescoping

10 to 25 m telescoping in approx. 75 sec; boom lift angle -1deg to +83deg in approx. 45 sec
