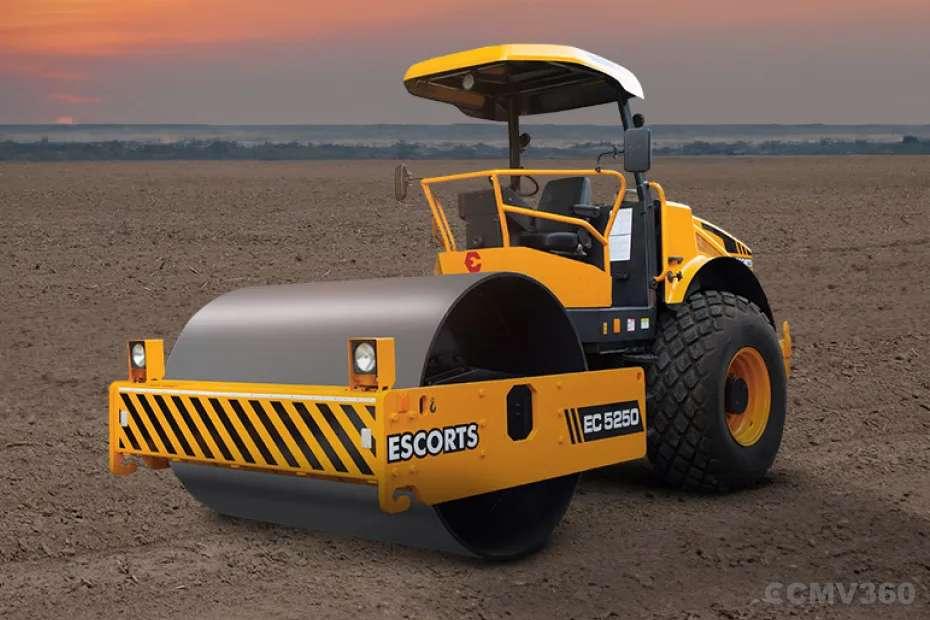

ESCORTS EC 5250 Plus

Model

KOEL 4R1190TA1 Water Cooled, 4 Cylinder CEV - IV Emission Norm

Compliant

CEV - IV Emission Norms

Gross Power

110 HP

Steering Angle

36 Degree

Turning Radius

Outer- 5500 MM, Inner- 3370 MM

Oscillation Angle

10 Degree

Safety Features

Neutral Start Safety, Emergency Brake Switch, Air Filter Clog Indicator, Hydraulic Filter Clog Indicator, Low Engine Qil Pressure Indicator & Alarm, Hydraulic Oil Temperature Gauge, Battery Charging Indicator, Starter Safety Relay, Coolant Temperature Gauge & Indicator, Vibration Cutoff at Neutral & Parking Brake, Engine Shutoff at High Coolant Temperature, Over Cranking Protection, Battery cut off switch

Salient Features

Canopy with Sun Top, RPM Gauge, Fuel Level Gauge, Joystick, Mobile Charger, Vandal Cover, Dust Guard, Bottle Hanger, Rear View Mirrors 2 number, LED Work Lights 3 number, Anti Slip Pad on Platform, Tail Lamp 4 Chamber

Drum Width

STD- 2130 MM, DD- 213g MM, PD- 2130 MM

Wheel Base

STD- 2880 MM, DD- 2880 MM, PD- 2880 MM

Drum Diameter

STD- 1523 MM, DD- 1523 MM, PD- 1739 MM

Overall Width

STD- 2290 MM, DD- 2290 MM, PD- 2290 MM

Axle Load Rear

STD- 4 540 (kg), DD- 4 540 (kg), PD- 4 540 (kg)

Overall Height

STD- 3045 MM, DD- 3045 MM, PD- 3095 MM

Overall Length

STD- 5550 MM, DD- 5550 MM, PD- 5550 MM

Axle Load Front

STD- 6 590 (kg), DD- 6 790 (kg), PD- 8 190 (kg)

Ground Clearance

STD- 435 MM, DD- 435 MM, PD- 485 MM

Operating Weight

STD- 11 130 (kg), DD- 11 330 (kg), PD- 12 730 (kg)

Static Linear Load

STD- 30.9 (kg/cm), DD- 31.9 (kg/cm), PD-

Drum Shell Thickness

STD- 25 MM, DD- 25 MM, PD- 25 MM

Max Operating Weight

STD- 11 430 (kg), DD- 11 630 (kg), PD- 13 030 (kg)

Centrifugal Force Low

STD- 18 898 (kg), DD- 18 898 (kg), PD- 18 898 (kg)

Centrifugal Force High

STD- 27 708 (kg), DD- 27 708 (kg), PD- 27 708 (kg)

Total Applied Force Low

STD- 25 448 (kg), DD- 25 648 (kg), PD- 27 088 (kg)

Total Applied Force High

STD- 34 298 (kg), DD- 34 498 (kg), PD- 35 898 (kg)

Drum Oil

5 Ltr.

Fuel Tank

265 Ltr.

Hydraulic Oil Tank

80 Ltr

Wheel Drive

STD- Rear Wheel Drive, DD- All Wheel Drive, PD- All Wheel Drive

Standard Tyre

All Weather Pattern 23.1/26-8 PR

Parking

Spring Applied, Hydraulically Released

Service

Hydrostatic

Gradebility

STD- 34%, DD- 45%, PD- 45%

Working Speed

STD- 0-9 Km/h, DD- 0-6 Km/h, PD- 0-6 Km/h

Travelling Speed

STD- 0-23 Km/h, DD- 0-10 Km/h, PD- 0-10 Km/h
