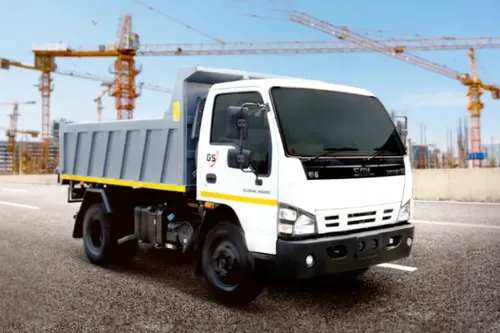

SML Isuzu Samrat GS Tipper

Fuel Type

Diesel

Power (HP)

114

Torque (Nm)

400

Clutch Type

310 mm Dry Single Plate with Diaphragm Spring With Hydraulic Booster

Emission Norm

BS-VI

Transmission Type

Manual

Engine Capacity (cc)

3455

Engine Type

BS-VI SLTHT6 IN-Line 4 Cylinder Common Rail Direct Injection Turbo Charger With Inter Cooler (Diesel)

Gearbox

Synchromesh Manual 5-Forward and 1 - Reverse

Number of Cylinders

4

Max Speed (Km/h)

Not Available

Mileage (Kmpl)

Not Available

Battery Type

Not Available

Gradeability (%)

Not Available

Body Type

Not Available

Cabin Type

Day Cabin

Chassis Type

Box type chassis for best safety in segment

Front Suspension

Semielliptical type Multileaf Spring with Shock Absorber

Rear Suspension

Semielliptical type Multileaf Spring with Shock Absorber

Turning Radius (mm)

Not Available

Ground Clearance (mm)

Not Available

Fuel Tank Capacity (Ltr)

90

Gross Vehicle Weight (Kg)

9500

Width (mm)

Not Available

Length (mm)

Not Available

Height (mm)

Not Available

Wheelbase (mm)

2815

Kerb Weight (Kg)

Not Available

Payload (Kg)

Not Available

Load Body Dimensions(LxWxH) (mm)

3305 x 1900 x 720 (10.8 ft)

Brakes

Dual Circuit, Full S Cam Air Brakes

Number of Tyres

6

Front Tyre Size

8.25x16- 16 PR

Rear Tyre Size

8.25x16- 16 PR

Power Steering

Yes

Steering

Power Steering

Parking Brake

Yes

Front Axle

Not Available

Rear Axle

Heavy Duty 13

Warranty

Engine & Gear Box: Upto 4 Years on Unlimited Kilometers Run, Vehicle & Differential: Upto 2 Years for Unlimited Kilometers Run

Telematics

Yes

Seat Belts

Yes

Seat Type

Standard Seats

Adjustable Driver Seat

Yes

Driver Information Display

Yes

Seating Capacity

Driver + 2 Passenger
