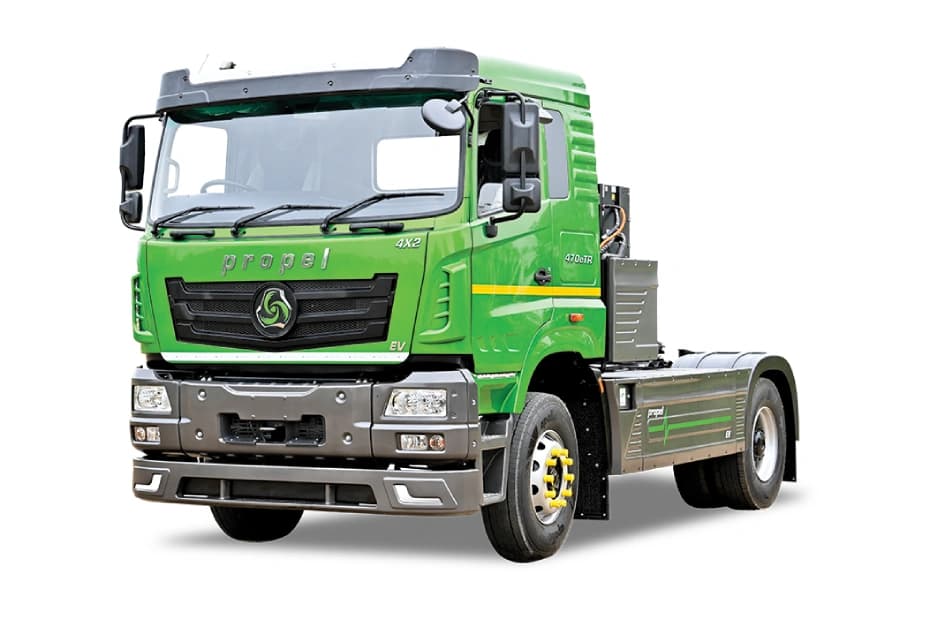

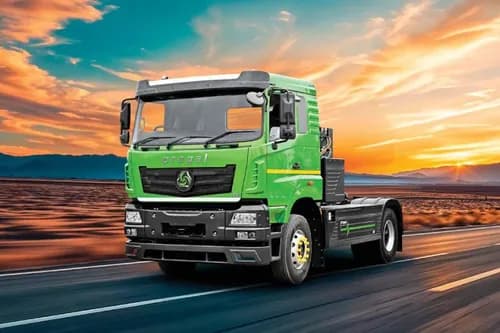

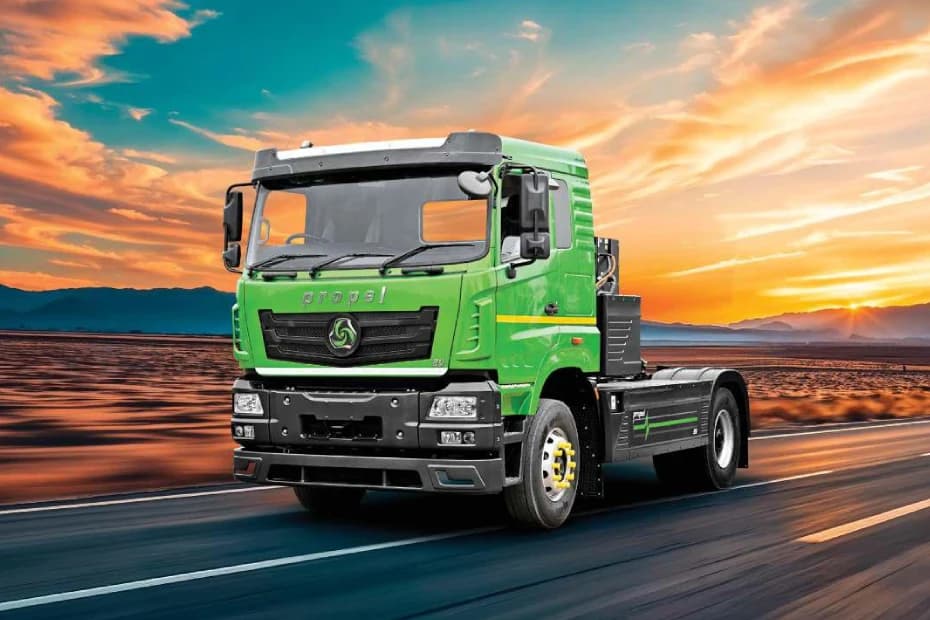

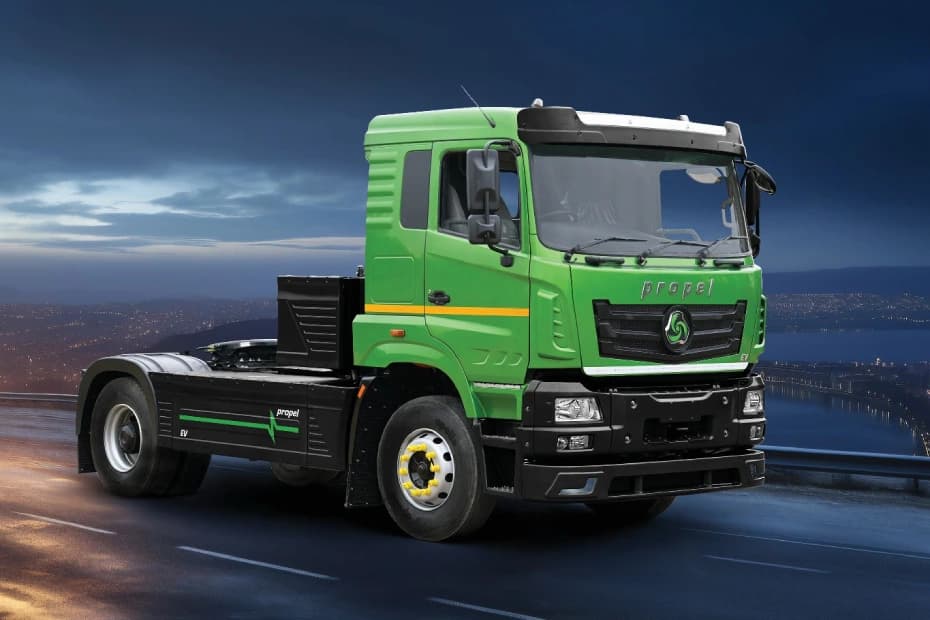

Propel 470 eTR Key Specs and Features
Driving Range
350 Km/charge
Battery Capacity
385/ 480/ 550 Kwh
Charging Time
385 kW battery - 1hrs 10min, 4...
Power
470 HP
GVW
55000 Kg
Ad
Ad
Propel 470 eTR Full Specifications
Applications
Tip-trailer, Bulker, Containers, Coal, Aggregates, Stee...
Width (mm)
2600
Gross Vehicle Weight...
55000
Length (mm)
6225
Height (mm)
3125
Wheelbase (mm)
3850
Battery Capacity (Kw...
385/ 480/ 550
Max Speed (Km/h)
80
Driving Range (Km/Ch...
350
Charging Time (Hours...
385 kW battery - 1hrs 10min, 480 kW battery - 2 hrs, 55...
Charger Type
CCS2
Gradeability (%)
24
Steering Type
Hydraulic Integral Power Steering, Tilt & Telescopic ad...
Tiltable Cabin
Yes
Front Axle
Reverse Elliot - Steerable front axle with shallow drop
Chassis Type
C’ channel section side members made of high strength s...
Rear Axle
Hub Reduction Axle
Cabin Type
Tilt Cabin with AC, Crash tested frontal protection str...
Front Suspension
Parabolic leaf suspension, Double-action shock absorber...
Body Type
Tractor Trailer
Rear Suspension
Hybrid Rear Spring (Parabolic - Helper & Semi-Elliptica...
Turning Radius (mm)
7000
Fuel Type
Electric
Power (HP)
470
Torque (Nm)
2600
Emission Norm
Zero Emissions
Transmission Type
EMT
Clutch Type
Clutchless, fatigueless drive
Gearbox
7 speed
Motor Type
Heavy duty PMSM motor with liquid cooled
Telematics
Yes
Adjustable Driver Se...
Yes
Seat Belts
Yes
Air Conditioner (AC)
Yes
Cruise Control
Yes
Seat Type
Standard Seats
ADAS (Advanced Drive...
Yes (Frontal Collision Detection, Driver Fatigue detec...
Driver Information D...
Yes
Tiltable Steering
Yes
Tubeless Tyres
Yes
Seating Capacity
Driver + 1 Passenger
Hill Hold
Yes
Brakes
Dual line air brake system with Spring type parking bra...
Parking Brake
Yes
ABS
Yes
Number of Tyres
6
Front Tyre Size
295/80R22.5 Tube Less, 295/90R20 Tube tyre (Optional)
Rear Tyre Size
295/80R22.5 Tube Less, 295/90R20 Tube tyre (Optional)
Compare With Similar Truck
 |  |  |  |  |  |  |
| Propel 470 eTR | Tata Ace EV | Tata Ace EV 1000 | Eicher Pro 2055 EV | Mahindra ZEO | Switch Mobility IeV3 | Switch Mobility IeV4 |
| Price Coming Soon | ₹ 10.20 Lakh | ₹ 11.27 Lakh | ₹ 27.00 Lakh | ₹ 7.52 Lakh | ₹ 12.32 Lakh | ₹ 15.29 Lakh |
Fuel Type | ||||||
| Electric | Electric | Electric | Electric | Electric | Electric | Electric |
Battery Capacity (kwh) | ||||||
| 385/ 480/ 550 | 21.3 | 21.3 | 64.4 | 18.4 | 25.6 | 32.2 |
Charging Time (hours) | ||||||
| 385 kW battery - 1hrs 10min, 480 kW battery - 2 hrs, 550 kW battery - 2hrs 30mins | Fast charging in 105 mins, Home Charging in 7 Hours | 7 | 8-10 | AC Charging (Onboard Regular (3.3 KW O/P))- 6 hrs, AC Charging (Wall Mounted (6.6 KW O/P))- 3.13 hrs &, DC Charging - 1.08 hrs | DC charging-Fast Charging 55 mins (0 to 80%), AC charger (32A)-3 hours 30 mins, AC charger (15A)-8 hours 15 mins | 8 Hours (Approx) |
Power (HP) | ||||||
| 470 | 36 | 36 | 122 | 40 | 53 | 80 |
GVW (kg) | ||||||
| 55000 | 1840 | 2120 | 5450 | 1675 | 2590 | 3490 |
Payload (kg) | ||||||
| - | 600 | 1000 | 2209 | 765 | 1250 (FSD) | 1700 |
| Currently Viewing | 470 eTR vs Ace EV | 470 eTR vs Ace EV 1000 | 470 eTR vs Pro 2055 EV | 470 eTR vs ZEO | 470 eTR vs IeV3 | 470 eTR vs IeV4 |
