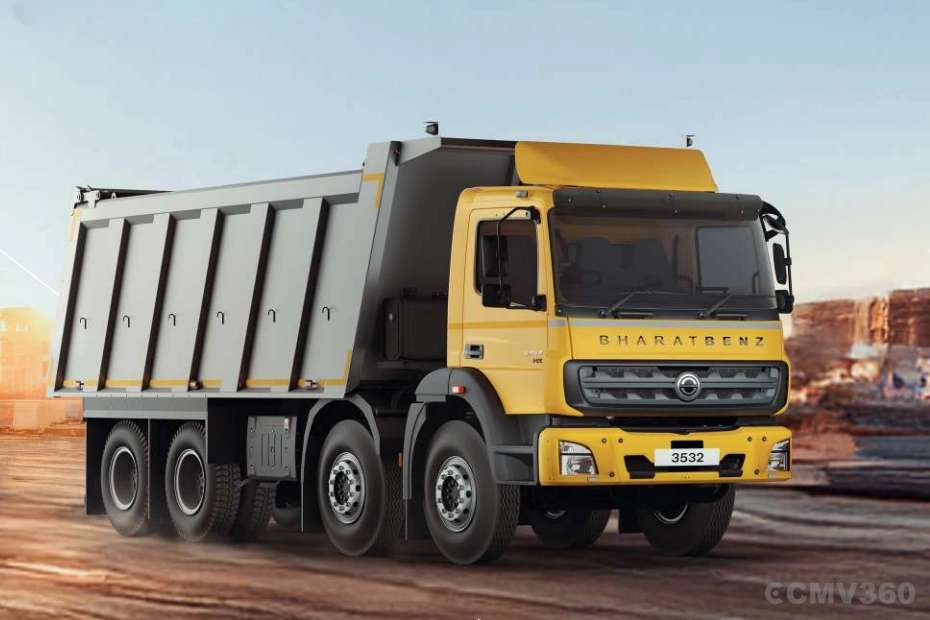

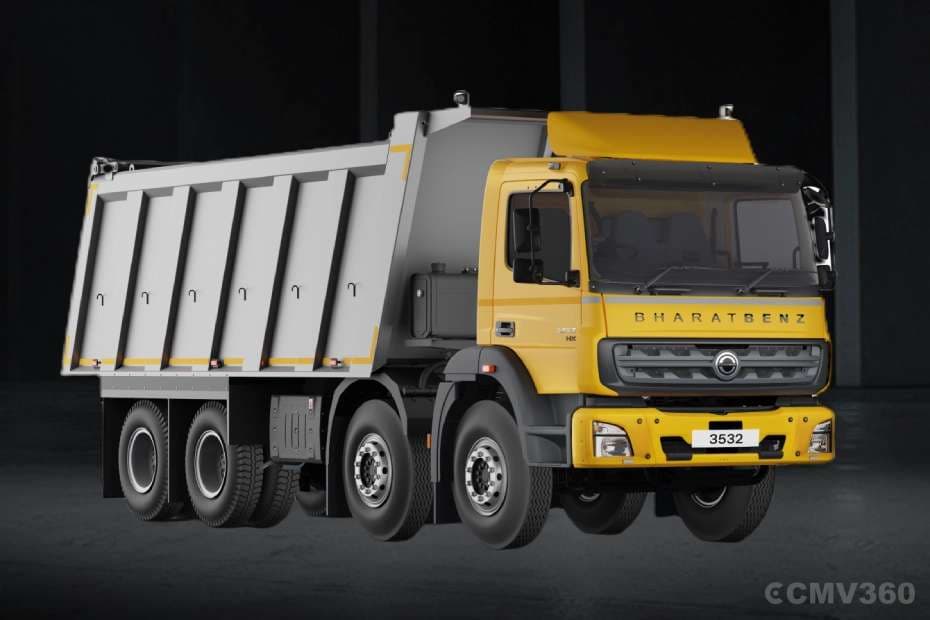

Bharat Benz 3532C HX

Fuel Type

Diesel

Power (HP)

316

Torque (Nm)

1250

Clutch Type

Single Dry Plate Organic

Emission Norm

BSVI OBD-II

Transmission Type

Manual, Synchromesh Gears

Engine Capacity (cc)

7200

Engine Type

OM 926 BSVI OBD-II

Gearbox

G131HD, 9F+1R

Number of Cylinders

6

Max Speed (Km/h)

60

Gradeability (%)

54

Body Type

Box Body

Cabin Type

Day Cabin

Chassis Type

Chassis with Cabin

Front Suspension

Improved Parabolic Type Leaf Spring with LC Bar and Hydraulic Shock Absorbers

Rear Suspension

Bolster Bogie Suspension with shock absorbers

Turning Radius (mm)

9750

Front Axle

IF 7.0 with Unitized Bearing

Rear Axle

IRT 440-11 with inter-axle & inter-wheel diff lock

Gross Vehicle Weight (Kg)

35000

Length (mm)

9015

Width (mm)

2550

Height (mm)

3800

Wheelbase (mm)

5175

Ground Clearance (mm)

247

Battery Capacity (Kwh)

2.88

Fuel Tank Capacity (Ltr)

260

Adblue Tank Capacity (Ltr)

51

Load body (Cu.m)

23 Box

Front Overhang (mm)

1485

Rear Overhang (mm)

940

Brakes

Pneumatic - Dual Line with ABS (Drum Brakes)

Tyre Size

11R20, 11x20 (O), 11x20 ML (O) with 8X20 Wheel Rim

Number of Tyres

12

Parking Brake

Pneumatic - Hand Control Valve

Steering Type

Hydraulic Power Assisted (Tilt and Telescopic)

Seat Belts

Yes

Adjustable Driver Seat

Yes

Tiltable Steering

Yes

Seating Capacity

Driver + 2 Passenger

Hill Hold

Yes

Warranty

6 Years

Application

Sand, M-sand, Blue metal, Gravel, Ready mix concrete, Coal mining
