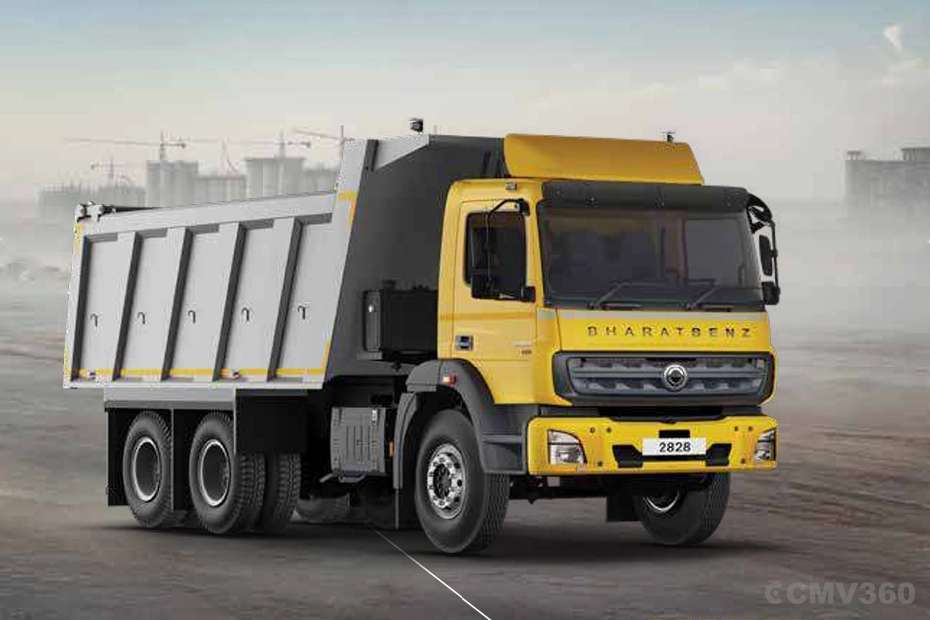

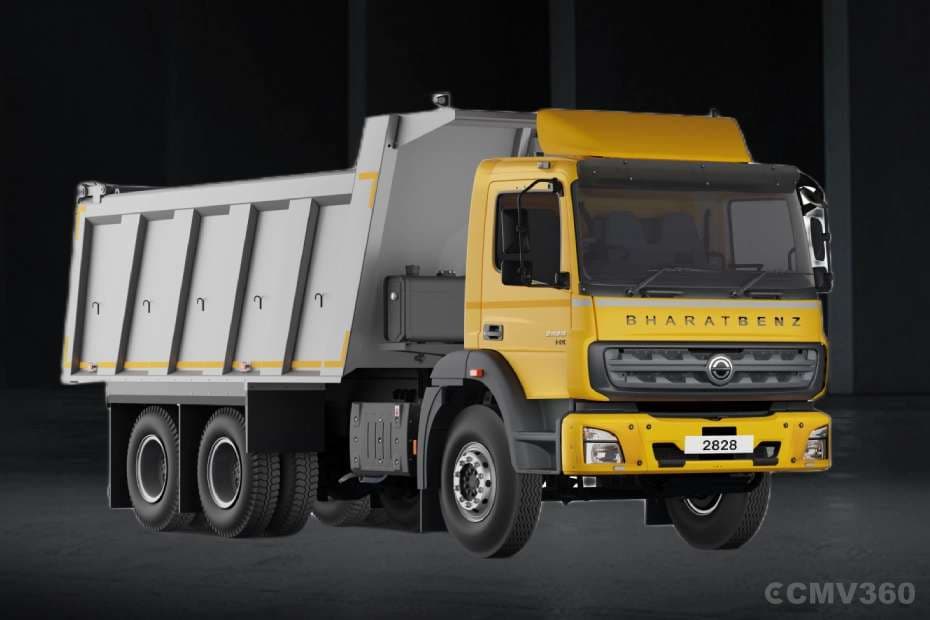

Bharat Benz 2828C HX

Fuel Type

Diesel

Power (HP)

281

Torque (Nm)

1100

Clutch Type

Single Dry Plate Organic

Emission Norm

BSVI OBD-II

Transmission Type

Manual

Engine Capacity (cc)

7200

Engine Type

OM 926 BSVI OBD-II

Gearbox

G131 | G131HD (O), 9F+1R

Number of Cylinders

6

Max Speed (Km/h)

60

Gradeability (%)

50

Body Type

Box Body

Cabin Type

Day Cabin

Chassis Type

Chassis with Cabin

Front Suspension

Improved Parabolic Type Leaf Spring with Hydraulic Shock Absorbers

Rear Suspension

Bolster Bogie Suspension with Shock Absorbers

Turning Radius (mm)

7750

Front Axle

IF 7.0 with Unitized Bearing

Rear Axle

IRT 440-11 with Inter-Axle & Inter-Wheel Diff Lock

Gross Vehicle Weight (Kg)

28000

Length (mm)

8380

Width (mm)

2590

Height (mm)

3260

Wheelbase (mm)

4575

Ground Clearance (mm)

247

Fuel Tank Capacity (Ltr)

260

Adblue Tank / Filling Capacity (Ltr)

51

Front Overhang (mm)

1485

Rear Overhang (mm)

1060

Load body (Cu.m)

18 Box

Battery Capacity (Kwh)

2.88

Brakes

Pneumatic - Dual Line with ABS

Tyre Size

11R20, 11x20 (O), 11x20 ML (O) with 8X20 Wheel Rim

Number of Tyres

10

Parking Brake

Pneumatic - Hand Control Valve

Steering Type

Hydraulic Power Assisted (Tilt and Telescopic)

Seat Belts

Yes

Adjustable Driver Seat

Yes

Tiltable Steering

Yes

Seating Capacity

Driver + 2 Passenger

Hill Hold

Yes

Warranty

6 Years

Application

Blue metal/Gravel, Ready mix concrete, Coal mining
