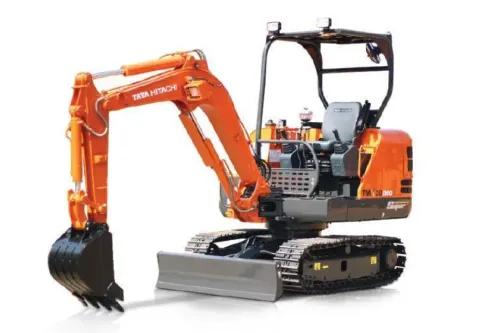

Tata Hitachi TMX 20 neo

Bore

N/A

Model

Yanmar 3TNV88-BSTAH

Power

27.4 HP (20.4 kW) @ 2200 rpm

Stroke

N/A

Displacement

N/A

Power Iso 14396

N/A

Net Power Iso 9249

27.5 HP

Weights Engine Oil

6.7 L

Weights Final Drive

N/A

Weights Swing Drive

N/A

Weights Cooling System

7.5 L

Weights Hydraulic Tank

45 L

Weights Operating Weight

2300 Kg

Weights Fuel Tank Capacity

37 L

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

70 L

Boom

1900 mm

Stick

1000 mm

Bucket

N/A

Track Gauge

1120 mm

Track Length

1300 mm

Handrail Height

N/A

Shipping Length

N/A

Transport Width

1400 mm

Ground Clearance

291

Tail Swing Radius

675 mm

Counterweight Clearance

610 mm

Shipping Height Top Of Cab

2368 mm

Length To Center Of Rollers

N/A

Maximum Pressure Swing

14.2 MPa

Maximum Pressure Travel

14.7 MPa

Main System Maximum Flow

63.6 Lpm

Maximum Pressure Equipment

14.7 MPa

Hydraulic System

N/A

Boom

N/A

Stick

N/A

Bucket Capacity

0.07

Lifting Capacity

N/A

Maximum Digging Depth

2323 mm

Maximum Cutting Height

3961 mm

Maximum Loading Height

2677 mm

Minimum Loading Height

N/A

Stick Digging Force Iso

12.7 kN

Bucket Digging Force Iso

18.5 kN

Maximum Reach At Ground Level

4040 mm

Maximum Vertical Wall Digging Depth

N/A

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A
