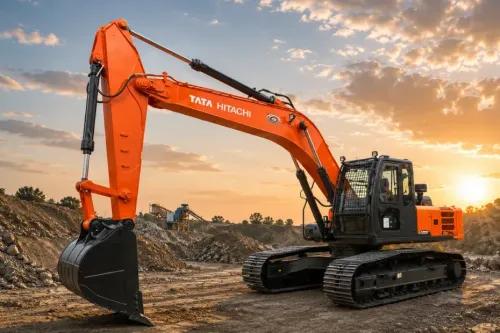

Tata Hitachi ZAXIS 890LCH

Bore

N/A

Model

N/A

Power

377 kW (506 HP)

Stroke

N/A

Displacement

N/A

Power Iso 14396

377 kW (506 HP), ISO 14396:2002

Net Power Iso 9249

N/A

Weights Engine Oil

N/A

Weights Final Drive

N/A

Weights Swing Drive

N/A

Weights Cooling System

N/A

Weights Hydraulic Tank

N/A

Weights Operating Weight

84300 Kg

Weights Fuel Tank Capacity

N/A

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

N/A

Boom

7100 mm

Stick

2950 mm

Bucket

N/A

Track Gauge

3450 / 2830 mm (extended / retracted)

Track Length

6360 mm

Handrail Height

N/A

Shipping Length

13680 mm

Transport Width

4450 mm

Ground Clearance

890 mm

Tail Swing Radius

4600 mm

Counterweight Clearance

1680 mm

Shipping Height Top Of Cab

3800 mm

Length To Center Of Rollers

5110 mm

Maximum Pressure Swing

N/A

Maximum Pressure Travel

N/A

Main System Maximum Flow

N/A

Maximum Pressure Equipment

N/A

Hydraulic System

HIOS-V hydraulic system

Boom

N/A

Stick

N/A

Bucket Capacity

4.5 - 6.0 m3

Lifting Capacity

Refer to lift capacity chart

Maximum Digging Depth

7140 mm

Maximum Cutting Height

12010 mm

Maximum Loading Height

8130 mm

Minimum Loading Height

3770 mm

Stick Digging Force Iso

N/A

Bucket Digging Force Iso

N/A

Maximum Reach At Ground Level

12020 mm

Maximum Vertical Wall Digging Depth

4100 mm

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

7000 mm
