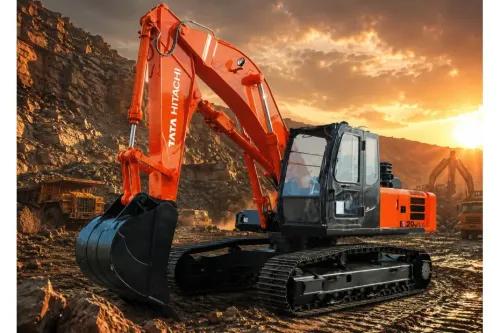

Tata Hitachi EX 200LC

Bore

102 mm

Model

Cummins 6BT5.9C

Power

133 HP (98 kW) @ 2000 rpm

Stroke

120 mm

Displacement

5.9 L

Power Iso 14396

133 HP (98 kW)

Net Power Iso 9249

133 PS (130 HP)

Weights Engine Oil

22 L

Weights Final Drive

Not publicly disclosed by Tata Hitachi for any EX-series model

Weights Swing Drive

6.7 L

Weights Cooling System

25 L

Weights Hydraulic Tank

129 L

Weights Operating Weight

20000 Kg

Weights Fuel Tank Capacity

310 L

Weights Service Refill Capacities

35

Weights Hydraulic System Including Tank

220 L

Boom

5680 mm

Stick

2220 mm (base), 2910 mm (long-arm option)

Bucket

930-1050 mm width (est., for 0.86-1.5 m³ range)

Track Gauge

2390 mm

Track Length

3660 mm

Handrail Height

1100 mm (est., standard cab height)

Shipping Length

9720 mm

Transport Width

2990 mm

Ground Clearance

435

Tail Swing Radius

2785 mm

Counterweight Clearance

1050 mm

Shipping Height Top Of Cab

2850 mm

Length To Center Of Rollers

4460 mm

Maximum Pressure Swing

26.9 MPa

Maximum Pressure Travel

34.3 MPa

Main System Maximum Flow

2 x 221 L/min

Maximum Pressure Equipment

27.9 MPa

Hydraulic System

2 variable-displacement axial piston pumps + 1 gear pump (Hitachi OHS)

Boom

5680 mm fixed boom, standard configuration

Stick

2220-2910 mm, optional arm lengths available

Bucket Capacity

1.5

Lifting Capacity

N/A - not applicable, excavator not rated for crane-lift duty

Maximum Digging Depth

6600 mm

Maximum Cutting Height

8990 mm

Maximum Loading Height

6230 mm

Minimum Loading Height

2650 mm (est.)

Stick Digging Force Iso

114.7 kN (11700 kgf)

Bucket Digging Force Iso

120.1 kN (12250 kgf)

Maximum Reach At Ground Level

9060 mm

Maximum Vertical Wall Digging Depth

5050 mm

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

2560 mm (est.)
