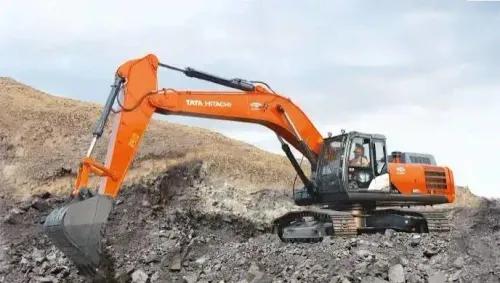

Tata Hitachi ZAXIS 370LCH

Bore

115 MM

Model

Isuzu AA-6HK1X

Power

250 HP

Stroke

125 MM

Displacement

7.790 L

Power Iso 14396

N/A

Net Power Iso 9249

250 PS

Weights Engine Oil

36 L

Weights Final Drive

N/A

Weights Swing Drive

N/A

Weights Cooling System

35 L

Weights Hydraulic Tank

180 L

Weights Operating Weight

35900 Kg

Weights Fuel Tank Capacity

630 L

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

340 L

Boom

N/A

Stick

N/A

Bucket

N/A

Track Gauge

2590 MM

Track Length

N/A

Handrail Height

N/A

Shipping Length

N/A

Transport Width

N/A

Ground Clearance

500

Tail Swing Radius

N/A

Counterweight Clearance

1170

Shipping Height Top Of Cab

3170

Length To Center Of Rollers

N/A

Maximum Pressure Swing

N/A

Maximum Pressure Travel

N/A

Main System Maximum Flow

2 Lpm

Maximum Pressure Equipment

N/A

Hydraulic System

N/A

Boom

N/A

Stick

N/A

Bucket Capacity

1.3

Lifting Capacity

N/A

Maximum Digging Depth

6810 MM

Maximum Cutting Height

10060

Maximum Loading Height

N/A

Minimum Loading Height

N/A

Stick Digging Force Iso

N/A

Bucket Digging Force Iso

N/A

Maximum Reach At Ground Level

N/A

Maximum Vertical Wall Digging Depth

5510

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A
