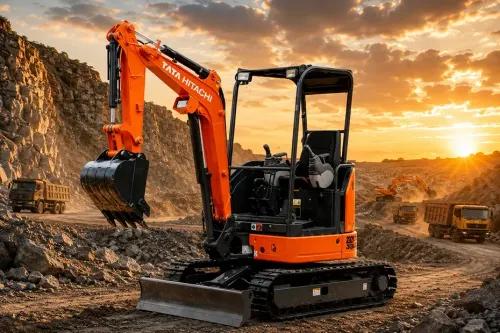

Tata Hitachi ZAXIS 23U

Bore

N/A

Model

Yanmar 3TNV76

Power

17.4 HP (13.1 kW) @ 2200 rpm

Stroke

N/A

Displacement

1.115 L

Power Iso 14396

N/A

Net Power Iso 9249

N/A

Weights Engine Oil

3.2 L

Weights Final Drive

N/A

Weights Swing Drive

N/A

Weights Cooling System

3.1 L

Weights Hydraulic Tank

30 L

Weights Operating Weight

2356 Kg

Weights Fuel Tank Capacity

34 L

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

19 L

Boom

N/A

Stick

N/A

Bucket

N/A

Track Gauge

1200 mm

Track Length

1500 mm

Handrail Height

N/A

Shipping Length

N/A

Transport Width

1400 mm

Ground Clearance

290

Tail Swing Radius

725 mm

Counterweight Clearance

490 mm

Shipping Height Top Of Cab

2410 mm

Length To Center Of Rollers

N/A

Maximum Pressure Swing

17.2 MPa

Maximum Pressure Travel

20.6 MPa

Main System Maximum Flow

2 x 26.4, 1 x 14.3 L/min

Maximum Pressure Equipment

20.6 MPa

Hydraulic System

2 variable-displacement axial piston pumps + 1 gear pump

Boom

N/A

Stick

N/A

Bucket Capacity

0.07

Lifting Capacity

N/A

Maximum Digging Depth

2330 mm

Maximum Cutting Height

4080 mm

Maximum Loading Height

2800 mm

Minimum Loading Height

N/A

Stick Digging Force Iso

12.3 kN

Bucket Digging Force Iso

18.6 kN

Maximum Reach At Ground Level

4060 mm

Maximum Vertical Wall Digging Depth

1940 mm

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A
