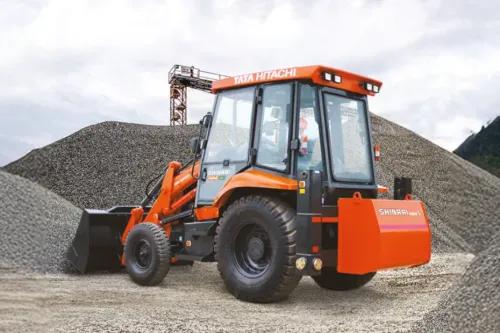

Tata Hitachi Shinrai Prime L

Model

V3800-TIE4B

Compliant

CEV Stage V (CEV5)

Gross Power

74.3 hp

Displacement

3769 CC

Maximum Torque

305 NM

Air Intake Type

Turbo-charged, inter-cooled, direct injection

Dump Angle

45°

Dump Height

2690 MM

Max Pay Load

1920 kg

Reach At Ground

1620 mm

Hinge Pin Height

3550 Mm

Load Over Height

3305 MM

Rollback At Ground

45° (bucket roll-in angle)

Bucket Capacity Std

1 Cum

Bucket Breakout Force

6580 kgf

Hinge Pin Forward Reach

360 MM

Max Reach At Full Height

1332 mm

Maximum Lifting Capacity

1800 kg

Loader Arm Breakout Force

5488 kgf

Below Ground Level Dig Depth

110 mm

Max Reach At Full Height Bucket Dumped

N/A

Type

Hydraulic actuation with priority for smooth control

System Pressure

245 bar

Unit Displacement

N/A

Turning Circle Diameter Outside Bucket

11.73 m

Turning Circle Diameter Outside Bucket Not Braked

8.6 m

Max Dig Depth

4700 mm

Bucket Capacity

0.3 Cum

Bucket Rotation

180°

Max Lift Capacity

1800 kg

Safe Working Load

N/A

Max Working Height

6050 mm (max cutting height in backhoe, stabilizer fully extended)

Dipper Configuration

N/A

Max Load Over Height

4200 mm (max loading height in backhoe, stabilizer fully extended)

Bucket Breakout Force

5685 kgf

Dipper Tear Out Force

3220 kgf

Bucket Capacity Backhoe

0.3 Cum

Reach Ground Level To Swing Center

N/A

Reach At Full Height To Slew Center

5440 mm

Reach Ground Level To Rear Wheel Center

6880 mm

Wheelbase

2130

Track Width Rear

1700 mm

Transport Length

6040 mm

Track Width Front

1900 mm

Width Over Bucket

N/A

Max Operating Weight

7800

Width Over Stabilizer

N/A

Height To Top Of Cabin

2940 MM

Minimum Ground Clearance

320 MM

Overall Transport Height

3530 mm

Pump Flow

113 lpm

Pump Type

Tandem gear pump (Excellent Hydraulic System - EHS)

System Type

Excellent Hydraulic System (EHS) with tandem gear pump for lower fuel consumption

System Relief Pressure

245 bar

Coolant

13 L

Fuel Tank

128 L

Rear Axle

17.1 L

Engine Oil

13.2 L

Hydraulic Oil System

86 Ltr

Hydraulic Oil Replacement

86 L

Transmission Oil Capacitysystem

16.5 L

Standard Tyre Rear

16.9 x 28 - 12 PR

Standard Tyre Front

9.0x16 - 16 PR

Hd Tyre Rear Optional

14x25, 20 PR

Parking

Hand-operated disc brake on the rear axle

Service

Oil-immersed wet disc, hydraulic-actuated, with independent pedals for better control in narrow spaces

Rear

Rear Carraro axle, High brake torque

Front

Heavy-duty, non-powered axle, floats up to +/-16° to handle uneven terrains

Front Axle Oscillation

+/-16°
