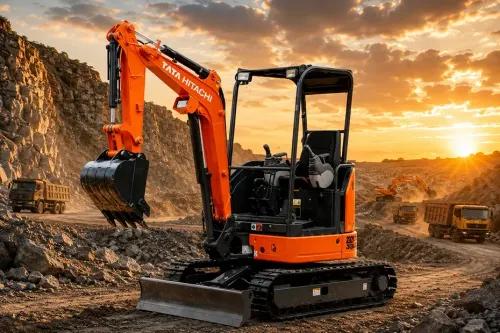

Tata Hitachi NX 50

Bore

N/A

Model

Yanmar 4TNV88-BSTAH

Power

35 HP (25.9 kW) @ 2100 rpm

Stroke

N/A

Displacement

2.19 L

Power Iso 14396

N/A

Net Power Iso 9249

N/A

Weights Engine Oil

7.4 L

Weights Final Drive

N/A

Weights Swing Drive

N/A

Weights Cooling System

5.7 L

Weights Hydraulic Tank

50 L

Weights Operating Weight

5190 Kg

Weights Fuel Tank Capacity

62 L

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

84 L

Boom

2884 mm

Stick

1500 mm

Bucket

N/A

Track Gauge

1450 mm

Track Length

1972 mm

Handrail Height

N/A

Shipping Length

5412 mm

Transport Width

1850 mm

Ground Clearance

323

Tail Swing Radius

1320 mm

Counterweight Clearance

638 mm

Shipping Height Top Of Cab

N/A

Length To Center Of Rollers

2490 mm

Maximum Pressure Swing

N/A

Maximum Pressure Travel

24.5 MPa

Main System Maximum Flow

2 x 42.0 L/min

Maximum Pressure Equipment

24.5 MPa

Hydraulic System

2 variable-displacement axial piston pumps + 1 gear pump (pilot)

Boom

N/A

Stick

N/A

Bucket Capacity

0.22

Lifting Capacity

N/A

Maximum Digging Depth

3547 mm

Maximum Cutting Height

5856 mm

Maximum Loading Height

4194 mm

Minimum Loading Height

N/A

Stick Digging Force Iso

24 kN

Bucket Digging Force Iso

37 kN

Maximum Reach At Ground Level

5782 mm

Maximum Vertical Wall Digging Depth

N/A

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A
