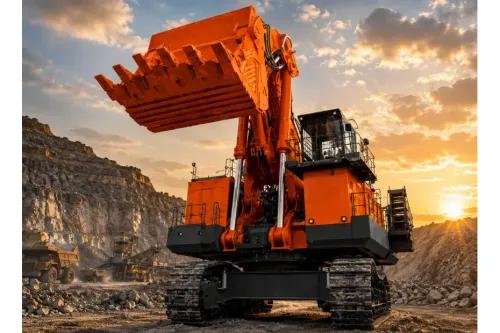

Tata Hitachi EX 8000-7

Bore

N/A

Model

2 x Cummins QSKTA60-CE

Power

2 x 1450 kW (2 x 1944 HP) @ 1800 rpm

Stroke

N/A

Displacement

2 x 60 L

Power Iso 14396

2 x 1450 kW (2 x 1944 HP) @ 1800 rpm

Net Power Iso 9249

N/A

Weights Engine Oil

N/A

Weights Final Drive

N/A

Weights Swing Drive

N/A

Weights Cooling System

N/A

Weights Hydraulic Tank

N/A

Weights Operating Weight

848000 Kg

Weights Fuel Tank Capacity

14900 L

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

N/A

Boom

11500 mm

Stick

5000 mm

Bucket

N/A

Track Gauge

N/A

Track Length

N/A

Handrail Height

N/A

Shipping Length

N/A

Transport Width

N/A

Ground Clearance

N/A

Tail Swing Radius

N/A

Counterweight Clearance

N/A

Shipping Height Top Of Cab

N/A

Length To Center Of Rollers

N/A

Maximum Pressure Swing

29.4 MPa (300 kgf/cm²)

Maximum Pressure Travel

29.4 MPa (300 kgf/cm²)

Main System Maximum Flow

16 x 500 L/min

Maximum Pressure Equipment

29.4 MPa (300 kgf/cm²)

Hydraulic System

16 variable-displacement axial piston pumps

Boom

N/A

Stick

N/A

Bucket Capacity

48

Lifting Capacity

N/A

Maximum Digging Depth

7740 mm

Maximum Cutting Height

17100 mm

Maximum Loading Height

11600 mm

Minimum Loading Height

5910 mm

Stick Digging Force Iso

2100 kN (214000 kgf)

Bucket Digging Force Iso

1960 kN (199000 kgf)

Maximum Reach At Ground Level

20300 mm

Maximum Vertical Wall Digging Depth

N/A

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A
