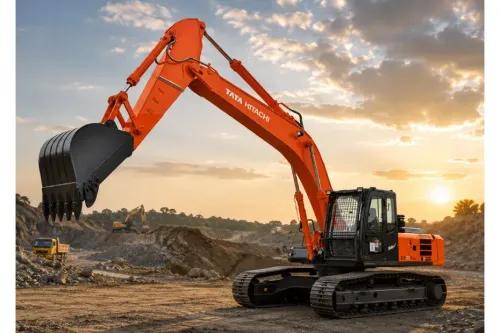

Tata Hitachi EX 210 INFRA Super+

Bore

N/A

Model

Cummins 6BT5.9C

Power

131 HP @ 2000 rpm

Stroke

N/A

Displacement

5.9 L

Power Iso 14396

N/A

Net Power Iso 9249

N/A

Weights Engine Oil

22 L

Weights Final Drive

N/A

Weights Swing Drive

N/A

Weights Cooling System

N/A

Weights Hydraulic Tank

129 L

Weights Operating Weight

20300 Kg

Weights Fuel Tank Capacity

300 L

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

220 L

Maximum Pressure Swing

26.97 MPa (275 kgf/cm²)

Maximum Pressure Travel

34.32 MPa (350 kgf/cm²)

Main System Maximum Flow

2 x 221 Lpm

Maximum Pressure Equipment

N/A

Hydraulic System

2 variable-displacement axial piston pumps

Boom

N/A

Stick

N/A

Bucket Capacity

1.5

Lifting Capacity

N/A

Maximum Digging Depth

5910-6600 mm

Maximum Cutting Height

N/A

Maximum Loading Height

6230-6610 mm

Minimum Loading Height

N/A

Stick Digging Force Iso

114.7 kN (11700 kgf)

Bucket Digging Force Iso

120.1 kN (12250 kgf)

Maximum Reach At Ground Level

9060-9740 mm

Maximum Vertical Wall Digging Depth

5050-5980 mm

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A

Cylinder Bore

N/A

Cylinder Store

N/A
