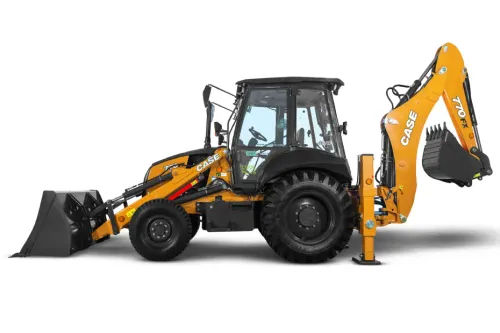

CASE 770 FX Backhoe Loader

Model

F5HFL463A*W

Compliant

N/A

Gross Power

74 HP

Displacement

3400 CC

Maximum Torque

325 NM

Air Intake Type

Turbocharged Intercooled

Dump Angle

45 Deg.

Dump Height

2730 MM

Max Pay Load

1925 Kg

Reach At Ground

1980 MM

Hinge Pin Height

3600 MM

Load Over Height

3300 MM

Rollback At Ground

33 Deg.

Bucket Capacity Std

1 Cum

Bucket Breakout Force

N/A

Hinge Pin Forward Reach

240 MM

Max Reach At Full Height

1190 MM (2WD), 1150 MM (4WD)

Maximum Lifting Capacity

N/A

Loader Arm Breakout Force

N/A

Below Ground Level Dig Depth

N/A

Max Reach At Full Height Bucket Dumped

760

Type

N/A

System Pressure

N/A

Unit Displacement

125 CC

Turning Circle Diameter Outside Bucket

N/A

Turning Circle Diameter Outside Bucket Not Braked

N/A

Max Dig Depth

4400 MM

Bucket Capacity

0 Cum

Bucket Rotation

204 Deg.

Max Lift Capacity

3515 Kg

Safe Working Load

N/A

Max Working Height

N/A

Dipper Configuration

N/A

Max Load Over Height

3800 MM

Bucket Breakout Force

N/A

Dipper Tear Out Force

N/A

Bucket Capacity Backhoe

0.2

Reach Ground Level To Swing Center

N/A

Reach At Full Height To Slew Center

N/A

Reach Ground Level To Rear Wheel Center

N/A

Wheelbase

2180 MM

Track Width Rear

N/A

Transport Length

N/A

Track Width Front

1880 MM (2WD), 1900 MM (4WD)

Width Over Bucket

2300 MM

Max Operating Weight

7600

Width Over Stabilizer

N/A

Height To Top Of Cabin

2830 MM

Minimum Ground Clearance

380 MM

Overall Transport Height

N/A

Pump Flow

N/A

Pump Type

N/A

System Type

N/A

System Relief Pressure

N/A

Coolant

20 Ltr

Fuel Tank

129 Ltr

Rear Axle

N/A

Engine Oil

9.1 Ltr

Hydraulic Oil System

107 Ltr

Hydraulic Oil Replacement

170/2000 Hrs

Transmission Oil Capacitysystem

18 Ltr (2WD), 20 Ltr (4WD)

Standard Tyre Rear

N/A

Standard Tyre Front

N/A

Hd Tyre Rear Optional

N/A

Parking

N/A

Service

N/A

Rear

N/A

Front

N/A

Front Axle Oscillation

N/A
