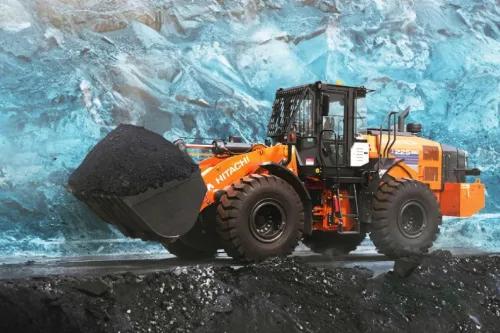

Tata Hitachi ZW 225 Wheel Loader

Bore

107 MM

Model

Cummins QSB6.7

Stroke

124 MM

Max Power

225 Hp

Displacementl

6.7 L

Max Torque N M

1000 NM

Operating Weight

18180

Tipping Load Full Turn

12683

Exterior Sound Power Db

N/A

Operator Sound Power Db

N/A

Wheelbase

3290 MM

B Pin Height

4070 MM

Bucket Capacity

5

Rack Back Carry

N/A

Ground Clearance

450

Rack Back Ground

N/A

Lift Arm Clearance

N/A

Height To Top Of Hood

N/A

Height To Top Of Rops

N/A

Rack Back Maximum Lift

N/A

Height To Top Of Exhaust Pipe

N/A

Center Line Of Rear Axle To Hitch

N/A

Center Line Of Rear Axle To Edge Of Counterweight

N/A

Implement Maximum Flow

271 L/min

Steering System Pump Type

N/A

Implement Maximum Operating Pressure

24500 KPA

Crankcase

N/A

Fuel Tank

255 L

Transmission

N/A

Cooling System

28 L

Hydraulic Tank

N/A

Differentials And Final Drives Rear

N/A

Differentials And Final Drives Front

N/A
