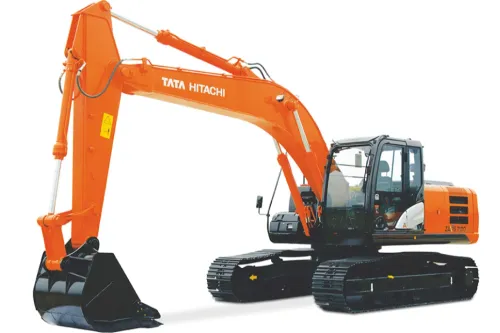

Tata Hitachi Zaxis 220 LCM Excavator

Bore

102 MM

Model

Mitsubishi S6K-TA61MHTA

Power

163 HP

Stroke

125 MM

Displacement

N/A

Power Iso 14396

0

Net Power Iso 9249

163 PS

Weights Engine Oil

25 Ltr

Weights Final Drive

N/A

Weights Swing Drive

6.2 Ltr

Weights Cooling System

N/A

Weights Hydraulic Tank

135 Ltr

Weights Operating Weight

21700 Kg

Weights Fuel Tank Capacity

400 Ltr

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

240 Ltr

Boom

N/A

Stick

N/A

Bucket

N/A

Track Gauge

2390 MM

Track Length

N/A

Handrail Height

N/A

Shipping Length

N/A

Transport Width

N/A

Ground Clearance

450 MM

Tail Swing Radius

3530 MM

Counterweight Clearance

1040 MM

Shipping Height Top Of Cab

2940 MM

Length To Center Of Rollers

N/A

Maximum Pressure Swing

N/A

Maximum Pressure Travel

N/A

Main System Maximum Flow

2 Lpm

Maximum Pressure Equipment

N/A

Hydraulic System

240 Ltr

Boom

N/A

Stick

N/A

Bucket Capacity

1.22

Lifting Capacity

N/A

Maximum Digging Depth

5920 MM

Maximum Cutting Height

9250 MM

Maximum Loading Height

N/A

Minimum Loading Height

N/A

Stick Digging Force Iso

N/A

Bucket Digging Force Iso

N/A

Maximum Reach At Ground Level

N/A

Maximum Vertical Wall Digging Depth

6030

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A
