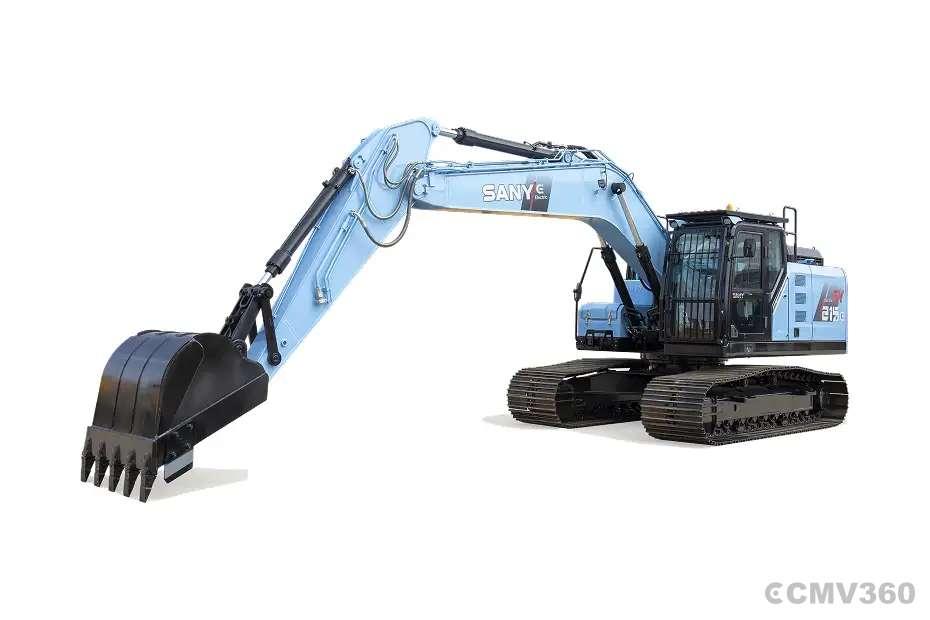

Sany SY215E

Engine Power

150 kW / 1,800 rpm (max. rated power)

Bucket Capacity

1.1 m³

Operating Weight

23,200 kg

Make

N/A — fully electric machine (no combustion engine)

Type

Permanent magnet synchronous motor

Model

Vmax electric powertrain

Power

150 kW @ 1,800 rpm (max. rated power)

Batteries

LFP (lithium-iron phosphate, cobalt-free) battery — 618 V rated voltage, 120 Ah rated capacity, 422 kWh full capacity; Aux battery 2 x 12 V. DC fast charge (320 kW dual-gun): 1.5 hrs; 3-phase 63A/40 kW: 8–10 hrs; Run time: 5–8 hrs

Max Torque

1,500 Nm

Weights Weight

23,200 kg

Weights Engine Oil

N/A — electric drivetrain, no engine oil

Weights Final Drive

Not published by SANY

Weights Swing Drive

Not published by SANY

Weights Hydraulic Tank

230 L

Weights Operating Weight

23,200 kg (incl. 75 kg operator, excl. attachments/hitch)

Weights Service Refill Capacities

Hydraulic oil tank: 230 L

Weights Hydraulic System Including Tank

230 L

Stick

2,925 mm (arm length)

Track Gauge

2,380 mm

Track Length

4,250 mm

Handrail Height

Not published by SANY

Shipping Length

9,910 mm

Transport Width

2,980 mm

Ground Clearance

440 mm (min.)

Tail Swing Radius

3,125 mm

Counterweight Clearance

1,130 mm

Shipping Height Top Of Cab

3,075 mm (height over cabin/ROPS)

Length To Center Of Rollers

Not published by SANY (closest published value: track ground length 3,445 mm)

Main Pumps

2 x variable-displacement axial piston pumps with electronic control

Pilot Pump

Pilot circuit pressure: 3.9 MPa (hydraulic pre-pressure operating joysticks)

Max Oil Flow

2 x 222 L/min

Fuel Tank Capacity

N/A — fully electric, no fuel tank

Arm Length

2,925 mm

Minimum Swing Radius

3,730 mm

Maximum Digging Depth

6,255 mm

Maximum Digging Reach

10,280 mm

Maximum Cutting Height

9,600 mm (max. digging height)

Maximum Loading Height

6,730 mm (max. dumping height; min. dumping height 2,392 mm)

Maximum Reach At Ground Level

10,280 mm (max. digging reach, ground line)

Maximum Vertical Wall Digging Depth

6,225 mm

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

Not published by SANY
