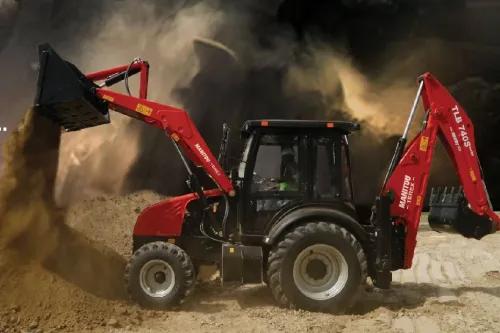

Manitou TLB 740S Backhoe Loader

Model

N/A

Compliant

N/A

Gross Power

76 HP

Displacement

N/A

Maximum Torque

N/A

Air Intake Type

N/A

Dump Angle

57 Deg

Dump Height

2708 MM

Max Pay Load

N/A

Reach At Ground

N/A

Hinge Pin Height

3550 MM

Load Over Height

N/A

Rollback At Ground

45 Deg

Bucket Capacity Std

N/A

Bucket Breakout Force

N/A

Hinge Pin Forward Reach

N/A

Max Reach At Full Height

1996 MM

Maximum Lifting Capacity

N/A

Loader Arm Breakout Force

4691 kgf

Below Ground Level Dig Depth

156 mm

Max Reach At Full Height Bucket Dumped

1282

Type

N/A

System Pressure

N/A

Unit Displacement

N/A

Turning Circle Diameter Outside Bucket

N/A

Turning Circle Diameter Outside Bucket Not Braked

N/A

Max Dig Depth

4741 MM

Bucket Capacity

1 Cum

Bucket Rotation

194 Deg

Max Lift Capacity

1460 Kg

Safe Working Load

N/A

Max Working Height

3762 mm

Dipper Configuration

N/A

Max Load Over Height

3553 MM (SAE), 3871 MM

Bucket Breakout Force

N/A

Dipper Tear Out Force

3942 kgf

Bucket Capacity Backhoe

0.2

Reach Ground Level To Swing Center

5730 mm

Reach At Full Height To Slew Center

N/A

Reach Ground Level To Rear Wheel Center

N/A

Wheelbase

2130 MM

Track Width Rear

N/A

Transport Length

7338 MM

Track Width Front

N/A

Width Over Bucket

2235 MM

Max Operating Weight

7500

Width Over Stabilizer

N/A

Height To Top Of Cabin

2770 mm

Minimum Ground Clearance

400 mm

Overall Transport Height

N/A

Pump Flow

N/A

Pump Type

N/A

System Type

N/A

System Relief Pressure

N/A

Coolant

16 Ltr

Fuel Tank

120 Ltr

Rear Axle

17.5 Ltr

Engine Oil

11 Ltr

Hydraulic Oil System

90 Ltr

Hydraulic Oil Replacement

N/A

Transmission Oil Capacitysystem

15 Ltr

Standard Tyre Rear

N/A

Standard Tyre Front

N/A

Hd Tyre Rear Optional

N/A

Parking

N/A

Service

N/A

Rear

N/A

Front

N/A

Front Axle Oscillation

N/A
