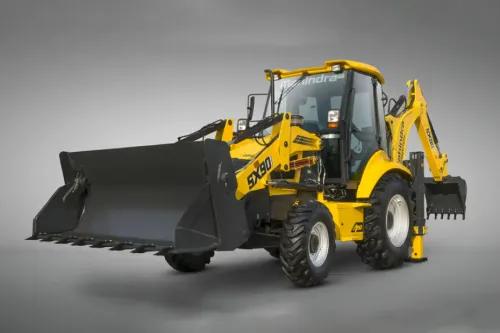

MAHINDRA EARTHMASTER SX90 4WD

Model

4915-IA-CE V

Compliant

BS III

Gross Power

91 hp

Displacement

3532 CC

Maximum Torque

345 NM

Air Intake Type

N/A

Dump Angle

44 Deg.

Dump Height

2715 MM

Max Pay Load

1800 kg

Reach At Ground

1350 MM

Hinge Pin Height

3477 MM

Load Over Height

3267 MM

Rollback At Ground

43 Deg.

Bucket Capacity Std

N/A

Bucket Breakout Force

N/A

Hinge Pin Forward Reach

220 MM

Max Reach At Full Height

N/A

Maximum Lifting Capacity

N/A

Loader Arm Breakout Force

N/A

Below Ground Level Dig Depth

107 MM

Max Reach At Full Height Bucket Dumped

4885

Type

N/A

System Pressure

N/A

Unit Displacement

N/A

Turning Circle Diameter Outside Bucket

N/A

Turning Circle Diameter Outside Bucket Not Braked

N/A

Max Dig Depth

4885 mm

Bucket Capacity

1 Cum

Bucket Rotation

N/A

Max Lift Capacity

1800 Kg

Safe Working Load

N/A

Max Working Height

3675 mm

Dipper Configuration

N/A

Max Load Over Height

4228 mm

Bucket Breakout Force

N/A

Dipper Tear Out Force

3182 kg

Bucket Capacity Backhoe

0.3

Reach Ground Level To Swing Center

5794 mm

Reach At Full Height To Slew Center

2676mm

Reach Ground Level To Rear Wheel Center

7104 mm

Wheelbase

2175 mm

Track Width Rear

1720 mm

Transport Length

5869 mm

Track Width Front

1914 mm

Width Over Bucket

2404 mm

Max Operating Weight

7742

Width Over Stabilizer

N/A

Height To Top Of Cabin

2978 mm

Minimum Ground Clearance

N/A

Overall Transport Height

N/A

Pump Flow

N/A

Pump Type

N/A

System Type

N/A

System Relief Pressure

N/A

Coolant

17 L

Fuel Tank

120 Liter

Rear Axle

N/A

Engine Oil

13.7 L

Hydraulic Oil System

117 Ltr

Hydraulic Oil Replacement

N/A

Transmission Oil Capacitysystem

43

Standard Tyre Rear

N/A

Standard Tyre Front

N/A

Hd Tyre Rear Optional

N/A

Parking

N/A

Service

N/A

Rear

17 L

Front

9.1 L

Front Axle Oscillation

N/A
