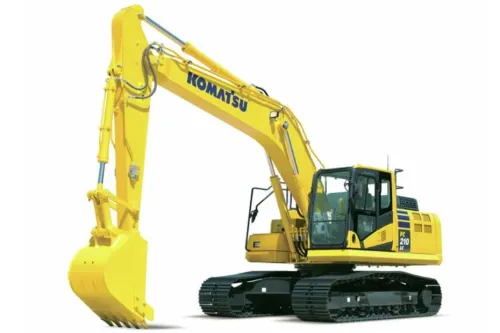

Komatsu PC210-10M0 Excavator

Bore

107 MM

Model

Komatsu SAA6D107E-1

Power

165 HP

Stroke

124 MM

Displacement

6.69 L

Power Iso 14396

0

Net Power Iso 9249

165 hp

Weights Engine Oil

23.1 L

Weights Final Drive

3.3 L

Weights Swing Drive

5.3 L

Weights Cooling System

N/A

Weights Hydraulic Tank

135 L

Weights Operating Weight

21100 Kg

Weights Fuel Tank Capacity

400

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

135

Boom

10300 MM

Stick

N/A

Bucket

N/A

Track Gauge

2200 MM

Track Length

4070 MM

Handrail Height

N/A

Shipping Length

N/A

Transport Width

N/A

Ground Clearance

440

Tail Swing Radius

2900 MM

Counterweight Clearance

1085

Shipping Height Top Of Cab

N/A

Length To Center Of Rollers

N/A

Maximum Pressure Swing

N/A

Maximum Pressure Travel

N/A

Main System Maximum Flow

N/A

Maximum Pressure Equipment

N/A

Hydraulic System

N/A

Boom

N/A

Stick

N/A

Bucket Capacity

1.7

Lifting Capacity

N/A

Maximum Digging Depth

6000 MM

Maximum Cutting Height

N/A

Maximum Loading Height

N/A

Minimum Loading Height

N/A

Stick Digging Force Iso

N/A

Bucket Digging Force Iso

N/A

Maximum Reach At Ground Level

N/A

Maximum Vertical Wall Digging Depth

5410

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A
