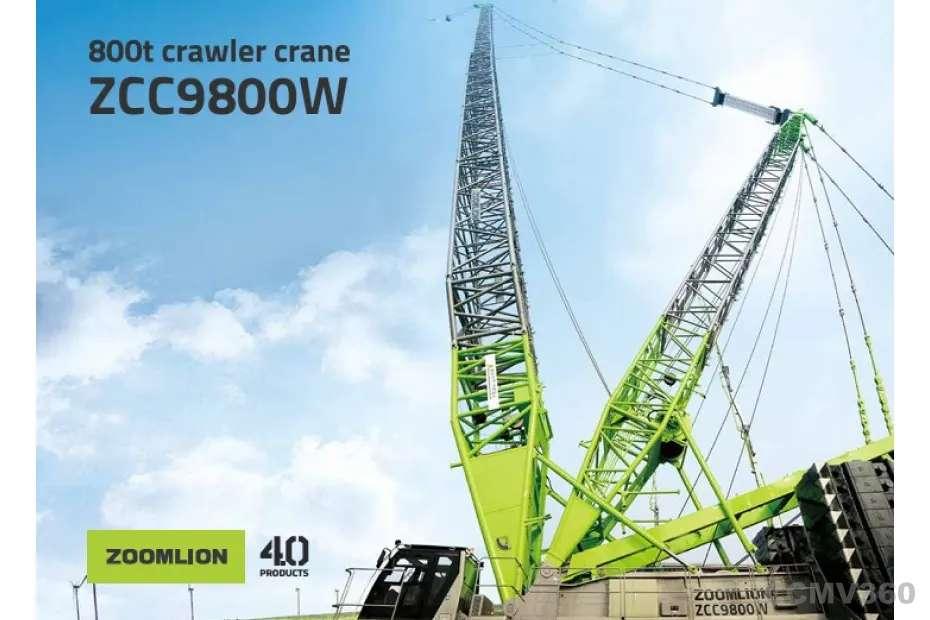

ZOOMLION ZCC9800

Boom Length

Standard main boom: 39-93 m · Standard light boom: 72-114 m · Superlift main boom: 39-141 m · Superlift light boom: 90-150 m · Power boom booster combo: up to 171 m

Engine Power

Not directly stated; engine is Cummins QSX15-C560 (~560 hp class)

Gradeability

30%

Fixed Jib Length

Wind power jib (fixed): 7 m

Max Lifting Capacity

800 t

Type

Cummins QSX15-C560

Power

Rated per Cummins QSX15-C560 spec; max output torque 2542 N·m @ 1400 rpm (rated power/speed figure not clearly legible in catalogue scan)

No Of Cylinders

Not specified in catalogue (QSX15 series is an inline 6-cylinder, 15L diesel)

Type

N/A - crawler track steering via two hydraulic motors/reducers per track (straight travel, single-track turn, differential steering, spot turn)

Pump

Main pump: variable displacement piston pump (Rexroth/Germany), engine-driven; auxiliary circuit: constant-pressure pump + tandem gear pump; pilot electro-hydraulic main control valve

Hydraulic Tank

940 L

Fuel Tank Capacity

Not specified in catalogue

Max Lifting Capacity

800 t (650 t standard main boom hook; 800 t optional hook/superlift configuration)

Rear

N/A - crawler-mounted, no tyres

Front

N/A - crawler-mounted, no tyres

Parking

Normally-closed brakes on hoisting/derricking winches and slewing mechanism auto-lock when control lever returns to neutral; mechanical slewing lock also engages during transport/assembly

Rear Wheel

N/A - not a wheeled machine

Front Wheel

N/A - not a wheeled machine

Type

Lattice boom - multiple configurations: standard main boom, standard light boom, superlift main boom, superlift light boom, and optional power boom booster

Length

39-141 m (superlift main boom range); up to 171 m+7 m jib with power boom booster (optional)

Telescoping

N/A - lattice pin-and-bolt boom sections, not telescopic
