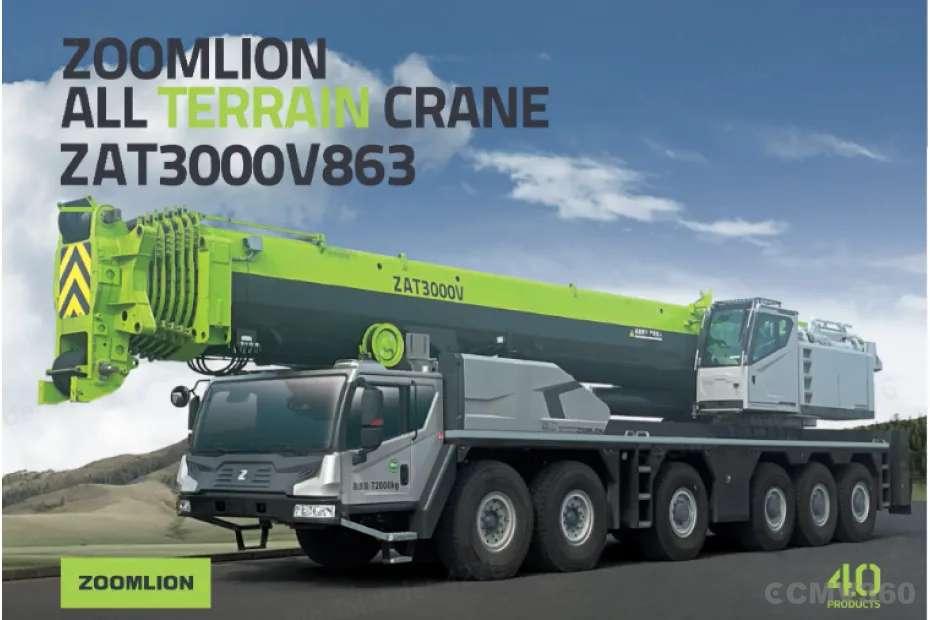

ZOOMLION ZAT3000V863

Boom Length

14.1–85 m (7-section telescopic main boom)

Engine Power

405 kW (Weichai WP13.550E62)

Gradeability

48%

Fixed Jib Length

Light-duty jib 20/28 m (optional 37.5 m); Heavy-duty jib 13/17/25 m

Max Lifting Capacity

300 t

Type

Diesel, Weichai WP13.550E62, 6-cylinder in-line, water-cooled, 4-stroke, turbo-charged, intercooled (shared for carrier and superstructure)

Power

Rated power 405 kW @ 1900 rpm; Max. output torque 2500 N·m @ 950–1400 rpm

No Of Cylinders

6

Type

Min. turning radius less than 12 m, total 6 steering modes

Pump

Single cylinder telescoping system with hydraulic interlocking device, double side pins (main boom)

Hydraulic Tank

Not specified in brochure

Fuel Tank Capacity

Not specified in brochure

Max Lifting Capacity

300 t

Rear

445/95R25

Front

445/95R25

Parking

Spring-loaded parking brake (emergency brake), acting on 6 disc brakes; plus Auxiliary engine exhaust brake

Rear Wheel

Service brake, dual-circuit air brake system, acting on 10 disc brakes

Front Wheel

Service brake, dual-circuit air brake system, acting on 10 disc brakes

Type

7-section telescopic boom, 1100 MPa high-tensile steel, oviform profile

Length

14.1–85 m

Telescoping

Yes – telescopic boom (8 sections incl. superlift); boom extending time 750 s; single-cylinder derricking mode
