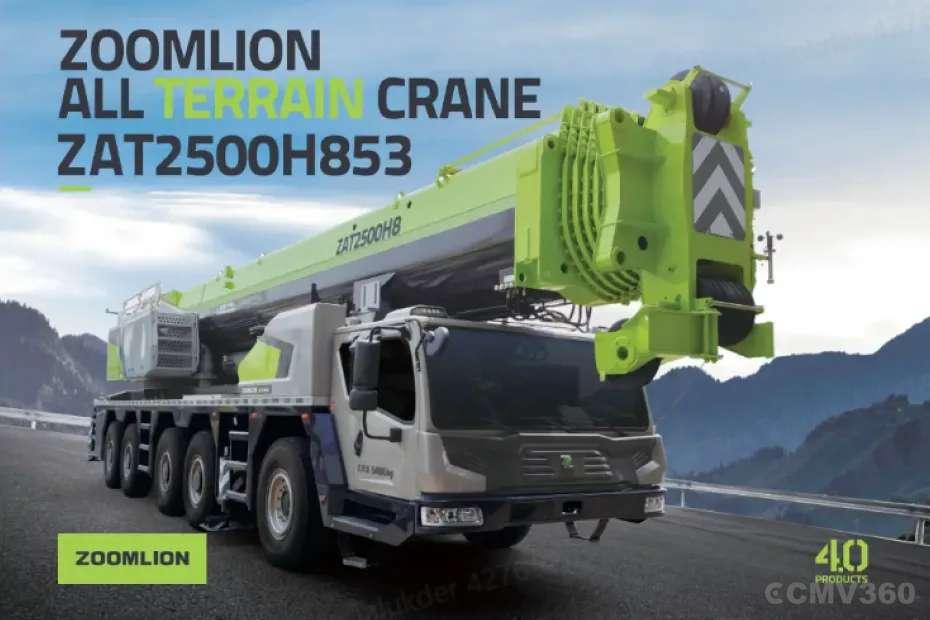

ZOOMLION ZAT2500H853

Boom Length

13.4–80 m (main boom, 8 oval sections)

Engine Power

390 kW (WEICHAI WP13.530E50)

Gradeability

45%

Fixed Jib Length

12 m / 20 m standard (extension to 28 m / 36 m)

Max Lifting Capacity

220 t (220000 kg at 3 m radius)

Type

Diesel, WEICHAI WP13.530E50, water-cooled 6-cylinder in-line, turbo-charged, inter-cooled (same engine used for both carrier and superstructure)

Power

390 kW @ 2100 rpm; Max. output torque 2220 N·m @ 1200–1500 rpm

No Of Cylinders

6

Type

All-wheel variable steering system with 6 steering programs. Axles 1 & 2 mechanically steered by steering wheel; Axles 3, 4, 5 by electro-hydraulic proportional control system

Pump

Electro-hydraulic proportional controlled system with computer control (superstructure)

Hydraulic Tank

Not specified in brochure

Fuel Tank Capacity

Not specified in brochure

Max Lifting Capacity

220 t (220000 kg)

Rear

445/95R25 (basic configuration, without inner tube); optional 385/95R25

Front

445/95R25 (basic configuration, without inner tube); optional 385/95R25

Parking

Parking brake (emergency brake) plus auxiliary brake

Rear Wheel

Disc brake (service brake)

Front Wheel

Disc brake (service brake)

Type

8 oval boom sections, low-alloy high-strength steel plate

Length

13.4–80 m

Telescoping

Yes – telescopic boom; boom extending time 750 s
