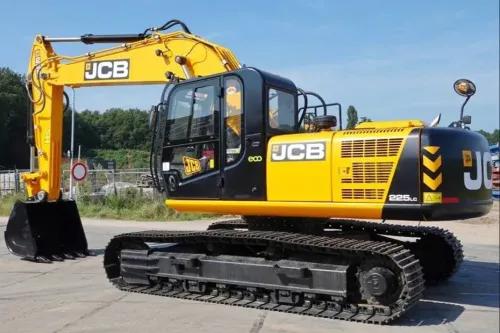

JCB NXT 225 LCM

Bore

N/A

Model

N/A

Power

148 HP

Stroke

N/A

Displacement

N/A

Power Iso 14396

N/A

Net Power Iso 9249

148 HP

Weights Engine Oil

19 Ltr

Weights Final Drive

Planetary reduction

Weights Swing Drive

N/A

Weights Cooling System

25.5 Ltr

Weights Hydraulic Tank

120 Ltr

Weights Operating Weight

22200 Kg

Weights Fuel Tank Capacity

343 Ltr

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

260 Ltr

Boom

N/A

Stick

N/A

Bucket

N/A

Track Gauge

2400 MM

Track Length

3710 MM

Handrail Height

N/A

Shipping Length

N/A

Transport Width

N/A

Ground Clearance

460 MM

Tail Swing Radius

2820 MM

Counterweight Clearance

1000 MM

Shipping Height Top Of Cab

N/A

Length To Center Of Rollers

N/A

Maximum Pressure Swing

N/A

Maximum Pressure Travel

N/A

Main System Maximum Flow

2 Lpm

Maximum Pressure Equipment

N/A

Hydraulic System

260 Ltr

Boom

N/A

Stick

N/A

Bucket Capacity

1.05

Lifting Capacity

N/A

Maximum Digging Depth

6140 MM

Maximum Cutting Height

N/A

Maximum Loading Height

N/A

Minimum Loading Height

N/A

Stick Digging Force Iso

N/A

Bucket Digging Force Iso

N/A

Maximum Reach At Ground Level

N/A

Maximum Vertical Wall Digging Depth

N/A

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A
