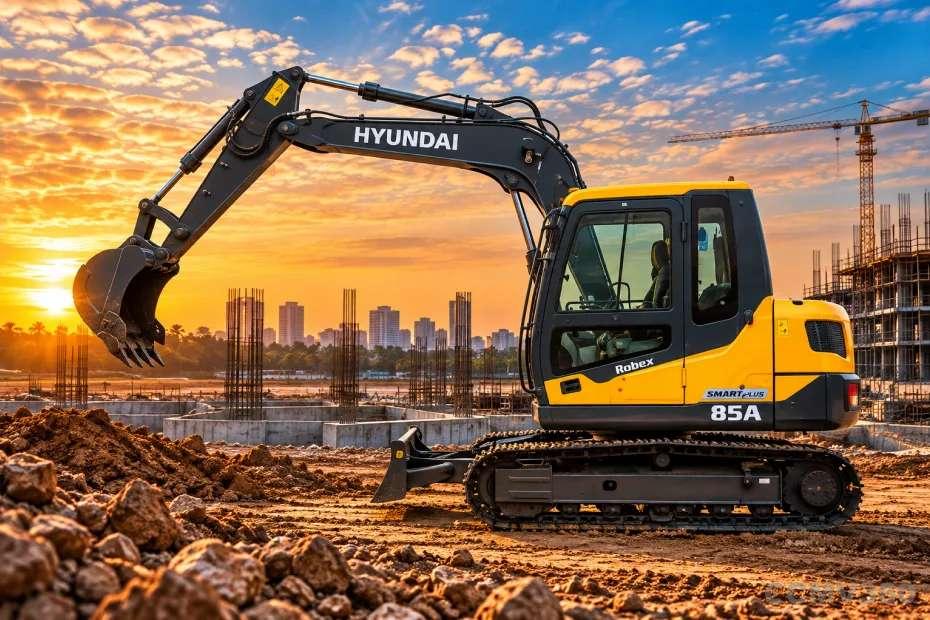

HYUNDAI R85A
EMI ₹ 0/month
Get complete price break up & offers
Ad
Features
Engine Power
76 HP (56.7 kW) gross @ 2,200 rpm
Bucket Capacity
0.35 m3 (GP); bucket range 0.32-0.70 m3
Operating Weight
8,100 kg (overview); 8,000 kg in the spec table; one dealer lists 7,900 kg
HYUNDAI R85A Specifications
Key Specification
Engine Power
76 HP (56.7 kW) gross @ 2,200 rpm
Bucket Capacity
0.35 m3 (GP); bucket range 0.32-0.70 m3
Operating Weight
8,100 kg (overview); 8,000 kg in the spec table; one dealer lists 7,900 kg
Engine Power
76 HP (56.7 kW) gross @ 2,200 rpm
Bucket Capacity
0.35 m3 (GP); bucket range 0.32-0.70 m3
Operating Weight
8,100 kg (overview); 8,000 kg in the spec table; one dealer lists 7,900 kg
View More
Engine
Make
Kirloskar
Type
Diesel, naturally aspirated
Model
4R1040NA
Power
76 HP (56.7 kW) gross @ 2,200 rpm
Batteries
N/A - diesel machine; standard electrical system
Max Torque
289-290 Nm @ 1,320 rpm (sources differ by 1 Nm)
Make
Kirloskar
Type
Diesel, naturally aspirated
Model
4R1040NA
View More
Overall Dimension & Weight
Weights Weight
8,100 kg (8,000 kg in the spec table)
Weights Engine Oil
Not publicly specified
Weights Final Drive
Not publicly specified
Weights Swing Drive
Not publicly specified
Weights Hydraulic Tank
Not publicly specified
Weights Operating Weight
8,100 kg (8,000 kg in the spec table; 7,900 kg on one dealer listing)
Weights Service Refill Capacities
Fuel tank 135 L (other capacities not publicly specified)
Weights Hydraulic System Including Tank
Not publicly specified
Weights Weight
8,100 kg (8,000 kg in the spec table)
Weights Engine Oil
Not publicly specified
Weights Final Drive
Not publicly specified
View More
Dimensions
Stick
Not publicly specified
Track Gauge
Not publicly specified
Track Length
Not publicly specified (38 shoes, 5 bottom rollers and 1 upper roller per side)
Handrail Height
Not publicly specified
Shipping Length
Not publicly specified
Transport Width
Not publicly specified (track shoe width 450 mm)
Ground Clearance
Not publicly specified
Tail Swing Radius
1,786 mm (one dealer lists 1,750 mm)
Counterweight Clearance
Not publicly specified
Shipping Height Top Of Cab
Not publicly specified
Length To Center Of Rollers
Not publicly specified
Stick
Not publicly specified
Track Gauge
Not publicly specified
Track Length
Not publicly specified (38 shoes, 5 bottom rollers and 1 upper roller per side)
View More
Hydraulic System
Main Pumps
2 variable-displacement piston pumps
Pilot Pump
Not publicly specified
Max Oil Flow
2 x 75.6 L/min; swing circuit 210 kg/cm2, travel circuit 280 kg/cm2 (per one dealer listing)
Main Pumps
2 variable-displacement piston pumps
Pilot Pump
Not publicly specified
Max Oil Flow
2 x 75.6 L/min; swing circuit 210 kg/cm2, travel circuit 280 kg/cm2 (per one dealer listing)
View More
Service Capacities
Fuel Tank Capacity
135 L
Fuel Tank Capacity
135 L
Working Ranges & Forces
Arm Length
Not publicly specified
Minimum Swing Radius
Not publicly specified
Maximum Digging Depth
4,205 mm (one dealer lists 4,150 mm)
Maximum Digging Reach
6,287 mm (per GeM listing)
Maximum Cutting Height
7,121 mm (per GeM listing)
Maximum Loading Height
5,096 mm (per GeM listing)
Maximum Reach At Ground Level
6,151 mm (one dealer lists 6,190 mm)
Maximum Vertical Wall Digging Depth
Not publicly specified
Maximum Depth Cut For 2440 Mm 8ft Level Bottom
Not publicly specified
Arm Length
Not publicly specified
Minimum Swing Radius
Not publicly specified
Maximum Digging Depth
4,205 mm (one dealer lists 4,150 mm)
View More
Ad
Similar Vehicles
Ex-Showroom price
Price Comin..
Engine Power
80 HP
Bucket Capacity
0.65
Ex-Showroom price
Price Comin..
Engine Power
284 HP
Bucket Capacity
2.3
Ex-Showroom price
Price Comin..
Engine Power
284 HP
Bucket Capacity
1.6
Ex-Showroom price
Price Comin..
Engine Power
76 HP
Bucket Capacity
0.32
Popular Comparisons
Ad
Ad
HYUNDAI R85A Price in India
| City | Ex Showroom Price |
| New Delhi | ₹ 34 lakh |
| Pune | ₹ 34 lakh |
| Chandigarh | ₹ 34 lakh |
| Bangalore | ₹ 34 lakh |
| Mumbai | ₹ 34 lakh |
| Hyderabad | ₹ 34 lakh |
