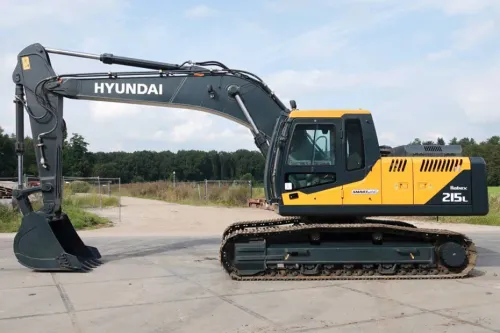

HYUNDAI R215L SMART PLUS

Bore

N/A

Model

Cummins6BTAA-5.9C

Power

148 HP

Stroke

N/A

Displacement

5800 cc

Power Iso 14396

N/A

Net Power Iso 9249

N/A

Weights Engine Oil

21 L

Weights Final Drive

5.8 L

Weights Swing Drive

5 L

Weights Cooling System

35 L

Weights Hydraulic Tank

180 L

Weights Operating Weight

22200 Kg

Weights Fuel Tank Capacity

340 L

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

290 L

Boom

N/A

Stick

N/A

Bucket

N/A

Track Gauge

2390 MM

Track Length

N/A

Handrail Height

N/A

Shipping Length

N/A

Transport Width

N/A

Ground Clearance

480 MM

Tail Swing Radius

2830 MM

Counterweight Clearance

1060 MM

Shipping Height Top Of Cab

2920 MM

Length To Center Of Rollers

N/A

Maximum Pressure Swing

N/A

Maximum Pressure Travel

N/A

Main System Maximum Flow

N/A

Maximum Pressure Equipment

N/A

Hydraulic System

290 L

Boom

N/A

Stick

N/A

Bucket Capacity

1.7

Lifting Capacity

N/A

Maximum Digging Depth

6740 MM

Maximum Cutting Height

N/A

Maximum Loading Height

N/A

Minimum Loading Height

N/A

Stick Digging Force Iso

N/A

Bucket Digging Force Iso

N/A

Maximum Reach At Ground Level

N/A

Maximum Vertical Wall Digging Depth

6120 MM

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A
