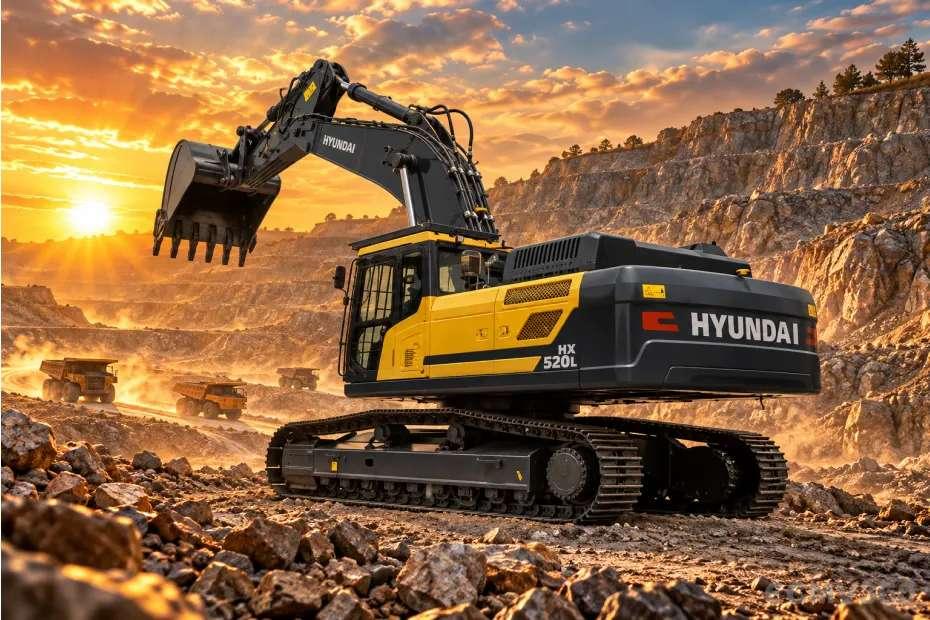

HYUNDAI HX520L

Engine Power

335 HP (250 kW) gross @ 2,100 rpm

Bucket Capacity

3.2 m3 GP / 2.79 m3 HD / 2.43 m3 RB

Operating Weight

50,200 kg

Make

Cummins

Type

6-cylinder, water-cooled, 4-cycle, turbocharged, charge-air-cooled, direct-injection, electronically controlled diesel; displacement 11.8 L (one source lists 10.8 L)

Model

X12

Power

335 HP (250 kW) @ 2,100 rpm

Batteries

Not publicly specified

Max Torque

1,674 Nm @ 1,400 rpm

Weights Weight

50,200 kg

Weights Engine Oil

34 L

Weights Final Drive

Not publicly specified

Weights Swing Drive

Not publicly specified

Weights Hydraulic Tank

275 L

Weights Operating Weight

50,200 kg

Weights Service Refill Capacities

Fuel tank 660 L; engine oil 34 L; hydraulic tank 275 L; total hydraulic system 499 L (oil and tank figures come from a third-party listing for the global-spec machine)

Weights Hydraulic System Including Tank

499 L (third-party listing for the global-spec machine; verify)

Stick

2,550 mm (arm length)

Track Gauge

Not publicly specified (track shoe width: 600 mm)

Track Length

5,490 mm (undercarriage length)

Handrail Height

Not publicly specified

Shipping Length

11,680 mm

Transport Width

3,340 mm (desimachines); one other listing shows 3,540 mm

Ground Clearance

Not publicly specified

Tail Swing Radius

3,800 mm

Counterweight Clearance

Not publicly specified

Shipping Height Top Of Cab

3,420 mm (height with cabin)

Length To Center Of Rollers

Not publicly specified (undercarriage length: 5,490 mm)

Main Pumps

2 variable-displacement pumps with electric independent pump control, Variable Power Control and Intelligent Power Control

Pilot Pump

Not separately specified; pilot circuit pressure 40 kgf/cm2

Max Oil Flow

2 x 405 L/min (810 L/min total); implement 330, swing 285, travel 360, power boost 360 kgf/cm2

Fuel Tank Capacity

660 L

Arm Length

2,550 mm

Minimum Swing Radius

Not publicly specified

Maximum Digging Depth

6,380 mm

Maximum Digging Reach

10,870 mm

Maximum Cutting Height

10,760 mm (max. digging height)

Maximum Loading Height

7,290 mm (max. dumping height)

Maximum Reach At Ground Level

Not publicly specified

Maximum Vertical Wall Digging Depth

Not publicly specified

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

Not publicly specified
