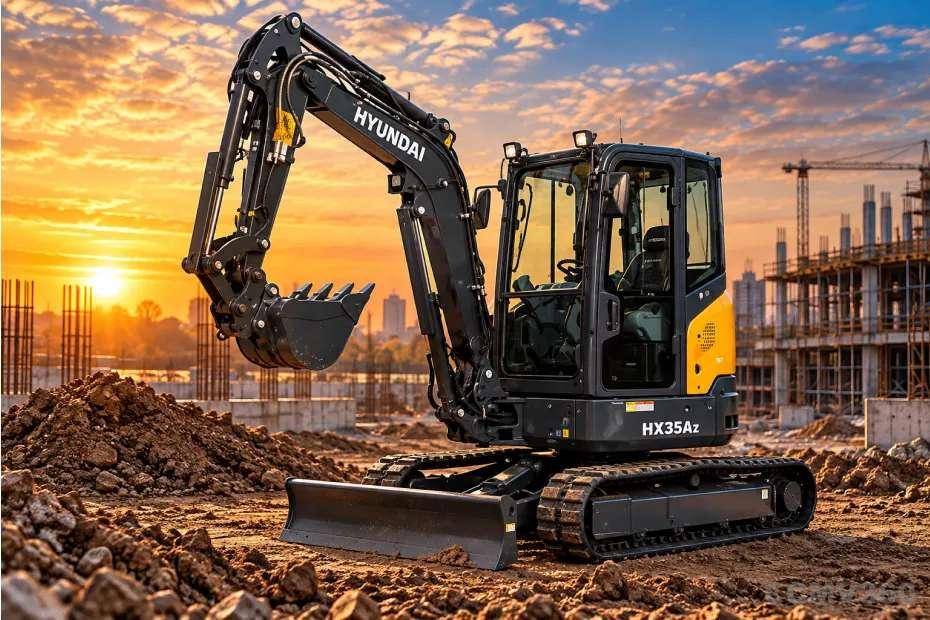

HYUNDAI HX35Az

Engine Power

25.2 PS (18.5 kW) gross @ 2,200 rpm; 24.2 PS (17.8 kW) net

Bucket Capacity

0.11 m3 (GP, SAE heaped)

Operating Weight

3,790-4,130 kg depending on arm and cab (1.6 m arm canopy: 3,790 kg; 1.3 m arm canopy: 3,970 kg; AC cab: 4,130 kg)

Make

Kubota

Type

Vertical, water-cooled, 3-cylinder in-line, 4-cycle DI diesel, low noise; Tier 4; bore x stroke 87 x 92.4 mm; displacement 1,647 cc

Model

D1703

Power

25.2 PS (18.5 kW) gross; 24.2 PS (17.8 kW) net

Batteries

N/A - diesel machine; 12 V system with 1.2 kW starter motor and 12 V 30 A alternator

Max Torque

9.9 kgf.m (about 97 Nm) @ 1,320 rpm

Weights Weight

3,790-4,130 kg (see operating weight)

Weights Engine Oil

7 L (read from a garbled brochure line; verify)

Weights Final Drive

0.6 L each side (travel reduction gear oil)

Weights Swing Drive

Not publicly specified

Weights Hydraulic Tank

36 L (read from a garbled brochure line; verify)

Weights Operating Weight

3,790-4,130 kg depending on arm and cab

Weights Service Refill Capacities

Fuel tank 46.8 L; engine coolant 9.5 L; engine oil 7 L; hydraulic tank 36 L; hydraulic system 63 L; travel reduction gear oil 0.6 L each side (coolant, oil and tank figures read from a garbled brochure line; verify)

Weights Hydraulic System Including Tank

63 L (read from a garbled brochure line; verify)

Stick

1,600 mm or 1,300 mm (two arm options)

Track Gauge

1,440 mm

Track Length

2,104 mm (without grouser)

Handrail Height

Not publicly specified

Shipping Length

4,783 mm (overall length)

Transport Width

1,740 mm (overall width)

Ground Clearance

167 mm (minimum)

Tail Swing Radius

900 mm (zero tail swing)

Counterweight Clearance

525 mm

Shipping Height Top Of Cab

2,490 mm (canopy brochure); 2,505 mm (AC cab brochure)

Length To Center Of Rollers

Not publicly specified (closest published value: tumbler distance 1,680 mm)

Main Pumps

Variable-displacement piston pumps

Pilot Pump

Gear pump (sub-pump for pilot circuit); pilot relief setting 40 kgf/cm2; flow not separately stated

Max Oil Flow

2 x 37.4 + 23.1 L/min; relief settings: implement and travel 230 kgf/cm2, swing 210 kgf/cm2

Fuel Tank Capacity

46.8 L

Arm Length

1,600 mm / 1,300 mm

Minimum Swing Radius

2,425 mm (1.6 m arm) / 2,350 mm (1.3 m arm)

Maximum Digging Depth

3,280 mm (1.6 m arm) / 2,980 mm (1.3 m arm)

Maximum Digging Reach

5,580 mm (1.6 m arm) / 5,290 mm (1.3 m arm)

Maximum Cutting Height

5,020 mm (1.6 m arm) / 4,820 mm (1.3 m arm)

Maximum Loading Height

3,615 mm (1.6 m arm) / 3,415 mm (1.3 m arm)

Maximum Reach At Ground Level

5,460 mm (1.6 m arm) / 5,170 mm (1.3 m arm)

Maximum Vertical Wall Digging Depth

2,540 mm (1.6 m arm) / 2,250 mm (1.3 m arm)

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

2,850 mm (1.6 m arm) / 2,500 mm (1.3 m arm)
