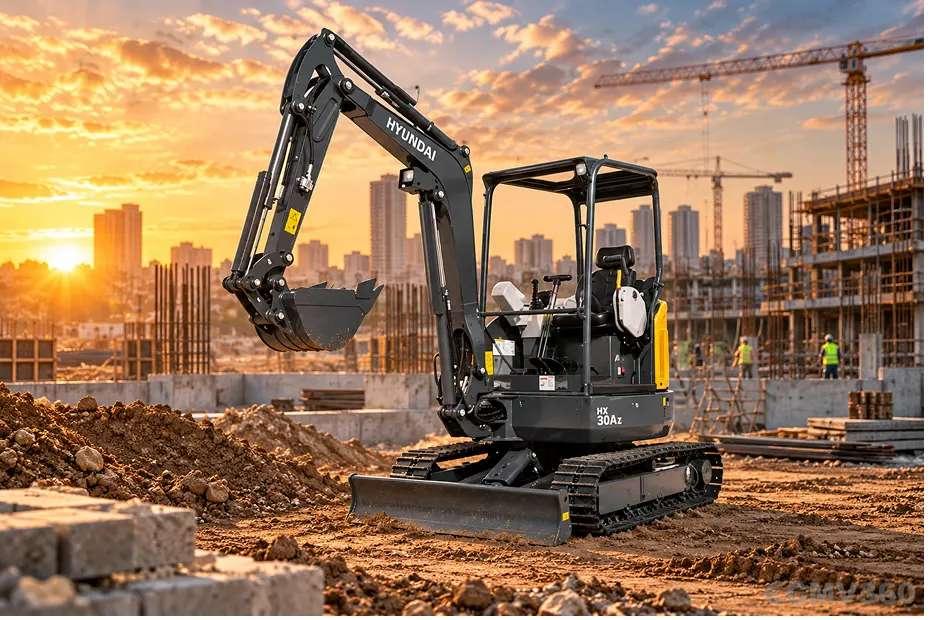

HYUNDAI HX30Az

Engine Power

24.8 hp (18.5 kW) gross; India listings quote 25.2 PS @ 2,400 rpm

Bucket Capacity

0.06 m3 (std, CECE); India listings quote 0.08 m3 GP SAE heaped

Operating Weight

2,890 kg (European brochure); India listings show 2,875 kg

Make

Kubota

Type

Vertical, water-cooled, 4-cycle IDI diesel, 3-cylinder, Stage V (no exhaust after-treatment); displacement 1,261 cc; bore x stroke 78.0 x 88.0 mm

Model

D1305

Power

24.8 hp (18.5 kW) gross; 24.4 hp (18.2 kW) net

Batteries

N/A - diesel machine; standard electrical system

Max Torque

81.4 Nm peak

Weights Weight

Transport weight: 2,685 kg (canopy) / 2,815 kg (cabin)

Weights Engine Oil

Not publicly specified

Weights Final Drive

Not publicly specified

Weights Swing Drive

Not publicly specified

Weights Hydraulic Tank

27 L (brochure lists tank/system capacity as 27 L)

Weights Operating Weight

2,890 kg (European brochure); India listings show 2,875 kg

Weights Service Refill Capacities

Fuel tank 30 L; hydraulic tank/system 27 L

Weights Hydraulic System Including Tank

27 L (as listed in brochure)

Stick

1,300 mm (arm length)

Track Gauge

1,250 mm (extension crawler)

Track Length

1,975 mm (undercarriage length)

Handrail Height

Not publicly specified

Shipping Length

4,170 mm (overall length, with 1,230 mm arm)

Transport Width

1,550 mm (overall width, extension crawler)

Ground Clearance

183 mm (minimum)

Tail Swing Radius

Zero tail swing; rear swing radius with additional counterweight 875 mm

Counterweight Clearance

504 mm

Shipping Height Top Of Cab

2,452 mm (overall height); the brochure also lists overall cab height as 2,542 mm, which is inconsistent with it

Length To Center Of Rollers

Not publicly specified (closest published value: distance between tumblers 1,550 mm)

Main Pumps

Variable-displacement tandem axial piston pumps; max pressure 220 kgf/cm2

Pilot Pump

Not separately specified (the +20 L/min in the max flow figure is the third delivery)

Max Oil Flow

2 x 28.2 + 20 L/min; auxiliary (2-way) flow 48 L/min

Fuel Tank Capacity

30 L

Arm Length

1,300 mm

Minimum Swing Radius

2,100 mm

Maximum Digging Depth

2,695 mm

Maximum Digging Reach

4,725 mm

Maximum Cutting Height

4,290 mm (max. digging height)

Maximum Loading Height

2,975 mm (max. dumping height)

Maximum Reach At Ground Level

4,600 mm

Maximum Vertical Wall Digging Depth

2,200 mm

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

2,230 mm
