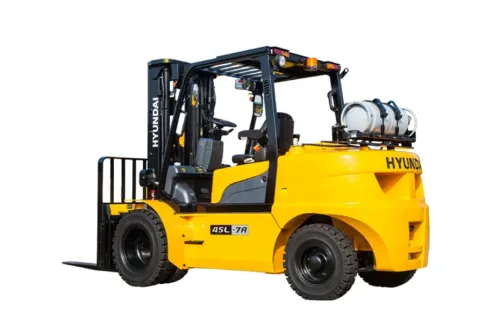

HYUNDAI 45L-7A

Rating

N/A

Rated Rpm

N/A

Make Model

N/A

No Of Cylinders

N/A

Rated Torque Kgm Rpm

N/A

Height

N/A

Fork L W T

50 x 150 x 1,220 MM

Aisle Width

4666 MM

Lift Height

3020 Meter

Overall Width

1740 MM

Std Free Lift

120 MM

Front Overhang

N/A

Turning Radius

2905 MM

Tilt Angle Forward

N/A

Fork Spread Maximum

N/A

Fork Spread Minimum

N/A

Tilt Angle Backward

N/A

Ground Clearance Fork

N/A

Ground Clearance Mast

155 MM

Overhead Guard Height

2240 MM

Fork Carriage Iso Class

IV / A

Length To Face Of Forks

3185 MM

Tyres Size Rear

7.00 x 12 x 12p

Tyres Size Front

7.50 x 16 x 12pr

Tyres Wheel Base

2000 MM

Parking Brakes Type

N/A

Service Brakes Type

Hydraulic
