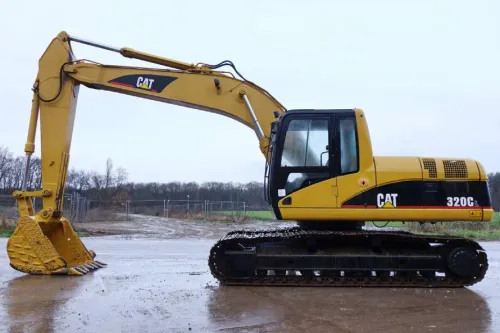

CAT 320CL Excavator

Bore

102 MM

Model

Cat 3066 T diesel engine

Power

143 HP

Stroke

130 MM

Displacement

6.4 liters

Power Iso 14396

N/A

Net Power Iso 9249

138 HP

Weights Engine Oil

30 Ltr

Weights Final Drive

10 Ltr

Weights Swing Drive

8 Ltr

Weights Cooling System

30 Ltr

Weights Hydraulic Tank

120 Ltr

Weights Operating Weight

22400 Kg

Weights Fuel Tank Capacity

320 Ltr

Weights Service Refill Capacities

N/A

Weights Hydraulic System Including Tank

200 Ltr

Maximum Pressure Swing

25000 kPa

Maximum Pressure Travel

34300 kPa

Main System Maximum Flow

205 Lpm

Maximum Pressure Equipment

34300 kPa

Hydraulic System

N/A

Boom

N/A

Stick

N/A

Bucket Capacity

0.95

Lifting Capacity

N/A

Maximum Digging Depth

4160 MM

Maximum Cutting Height

N/A

Maximum Loading Height

N/A

Minimum Loading Height

N/A

Stick Digging Force Iso

N/A

Bucket Digging Force Iso

N/A

Maximum Reach At Ground Level

N/A

Maximum Vertical Wall Digging Depth

3282 MM

Maximum Depth Cut For 2440 Mm 8ft Level Bottom

N/A

Cylinder Bore

120 MM

Cylinder Store

1260 MM
