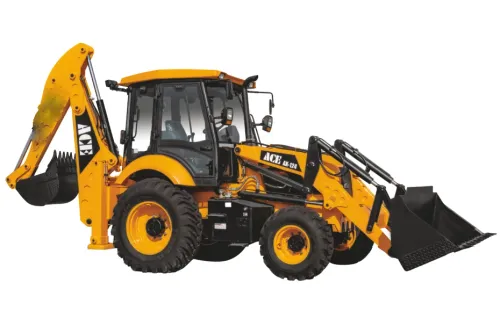

ACE AX-124

Model

KIRLOSKAR 4R1190NA1

Compliant

N/A

Gross Power

74 HP

Displacement

N/A

Maximum Torque

300 NM

Air Intake Type

N/A

Dump Angle

45 Degree

Dump Height

2760 MM

Max Pay Load

1900 Kg

Reach At Ground

1770 MM

Hinge Pin Height

N/A

Load Over Height

3340 MM

Rollback At Ground

44 Degree

Bucket Capacity Std

1 Cum

Bucket Breakout Force

N/A

Hinge Pin Forward Reach

N/A

Max Reach At Full Height

1220 MM

Maximum Lifting Capacity

N/A

Loader Arm Breakout Force

N/A

Below Ground Level Dig Depth

80 MM

Max Reach At Full Height Bucket Dumped

890

Type

Hydrostatic steering for reliability and better control

System Pressure

N/A

Unit Displacement

N/A

Turning Circle Diameter Outside Bucket

N/A

Turning Circle Diameter Outside Bucket Not Braked

N/A

Max Dig Depth

4250 MM

Bucket Capacity

1 Cum

Bucket Rotation

175 Degree

Max Lift Capacity

N/A

Safe Working Load

N/A

Max Working Height

N/A

Dipper Configuration

N/A

Max Load Over Height

3340 MM

Bucket Breakout Force

N/A

Dipper Tear Out Force

N/A

Bucket Capacity Backhoe

0.2

Reach Ground Level To Swing Center

N/A

Reach At Full Height To Slew Center

2780 MM

Reach Ground Level To Rear Wheel Center

N/A

Wheelbase

2180 MM

Track Width Rear

1550 MM

Transport Length

N/A

Track Width Front

1840 MM

Width Over Bucket

N/A

Max Operating Weight

8040

Width Over Stabilizer

N/A

Height To Top Of Cabin

N/A

Minimum Ground Clearance

350 MM

Overall Transport Height

N/A

Pump Flow

118 IPM

Pump Type

N/A

System Type

N/A

System Relief Pressure

210 Bar

Coolant

N/A

Fuel Tank

150 Ltr

Rear Axle

Front Drive( In Case Of 4 Wd & Steer Axle Centrally Pivoted Rear: Rigid Axle With Carraro Planetary

Engine Oil

11 Ltr

Hydraulic Oil System

80 Ltr

Hydraulic Oil Replacement

N/A

Transmission Oil Capacitysystem

17 Ltr

Standard Tyre Rear

16.90 - 28 - 12 PR

Standard Tyre Front

9.00 x 16 – 16 PR

Hd Tyre Rear Optional

N/A

Parking

N/A

Service

N/A

Rear

Rigid axle with CARRARO planetary drive

Front

Drive & Steer Axle, centrally pivoted

Front Axle Oscillation

N/A
