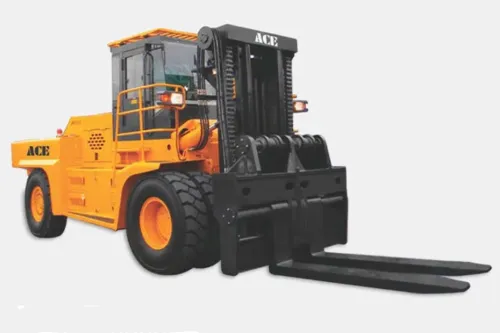

ACE AF 350D

Rating

260 HP

Rated Rpm

2200

Make Model

N/A

No Of Cylinders

6

Rated Torque Kgm Rpm

1025/1400

Height

N/A

Fork L W T

2440X340x125 MM

Aisle Width

N/A

Lift Height

N/A

Overall Width

3300 MM

Std Free Lift

N/A

Front Overhang

N/A

Turning Radius

7200 MM

Tilt Angle Forward

N/A

Fork Spread Maximum

N/A

Fork Spread Minimum

N/A

Tilt Angle Backward

N/A

Ground Clearance Fork

N/A

Ground Clearance Mast

400 MM

Overhead Guard Height

3760

Fork Carriage Iso Class

N/A

Length To Face Of Forks

N/A

Tyres Size Rear

2x16.00-25/28PR

Tyres Size Front

4x16.00-25/32PR

Tyres Wheel Base

4800 MM

Parking Brakes Type

inside expanding manual brake

Service Brakes Type

Caliper disc Brake
