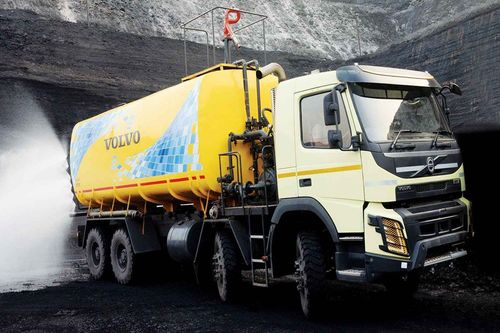

Volvo FMX 460 8X4 Mist Water Sprinkler

Bore

131 mm x 158 mm

Cooling type

Oil Cooled

Fuel Type

Diesel

Power

460

Reverse Gears

4

Torque

2300

Forward Gears

12

Clutch Type

Power assisted push type single plate friction disc

Differential Lock

Yes

Type

Manual

Engine Capacity

12800

PTO Clutch Type

Clutch independent, rear-mounted, engine power take-off

Number of Gears

12 forward + 4 reverse

Gearbox

I-Shift (Automated range/splitter gearbox)

No of Cylinders

6

Body Type

Heavy

Cabin Type

FMX day cabin

Chassis

Chassis with Cabin

Suspension - Front

Front Parabolic suspension with S-shaped leaf geometry

Suspension - Rear

Heavy duty bogie suspension with conventional multi-leaf spring Rubber journalled V-stays

No Of Doors

2

Turning Radius

11600

Length

10015

Width

2590

Height

3700

Wheelbase

6285

Ground Clearance

340

Fuel Tank Capacity

290

Brakes

Dual line air brake system

Brakes - Rear

Dual line air brake system Z-cam drum brakes with automatic adjustment

Front Tyre Size

8.5 x 20

Rear Tyre Size

8.5 x 20

No of Tyres

12

Tyre Types

Cross Ply

Wheels Size

20 Inch

Adjustable steering

Yes

Cruise Control

Yes

Power Steering

Yes

Driver's seat heigth adjust

Yes

Steering

Hydraulic power steering

Tiltable Cabin

1

Parking Brake

Yes

Front Axle

Twin heavy duty steerable front axle with high ground clearance Capacity (twin axles) 18000 kgs

Rear Axle

Drive tandem hub reduction axle with four planetary gears

Shock Absorbers

Rubber journalled V-stays, reaction rods, stabiliser and two shock absorbers

Warranty

NA

Mileage (kmpl)

2.25-3.25
